STPS30M120SR

STPS30M120SR Overview

Product belongs to the STPS30M120S series. This product is categorized as Schottky Rectifiers Tube is the packaging method for this product Weight of 0.073511 oz Through Hole Mounting-Style TO-262-3 Long Leads, I2Pak, TO-262AA Si is the technology used. Through Hole mounting type Supplier device package: I2PAK Configuration Dual Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 275μA @ 120V Current-Reverse-Leakage-Vr 1. Vf Max 900mV @ 30A is the Voltage-Forward; Maximum DC reverse voltage 120V The 30A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 150°C (Max) Power-off control: - Maximum operating temperature of + 150 C Minimum operating temperature: - Vf-Forward-Voltage: 900 mV VR Reverse Voltage of 120 V Ir-Reverse-Current is 345 uA. If-Forward-Current is 30 A. VRRM (120 V) Reverse Voltage 260 A IFSM Forward Surge Current The - TRR-Reverse-Recovery-time

STPS30M120SR Image

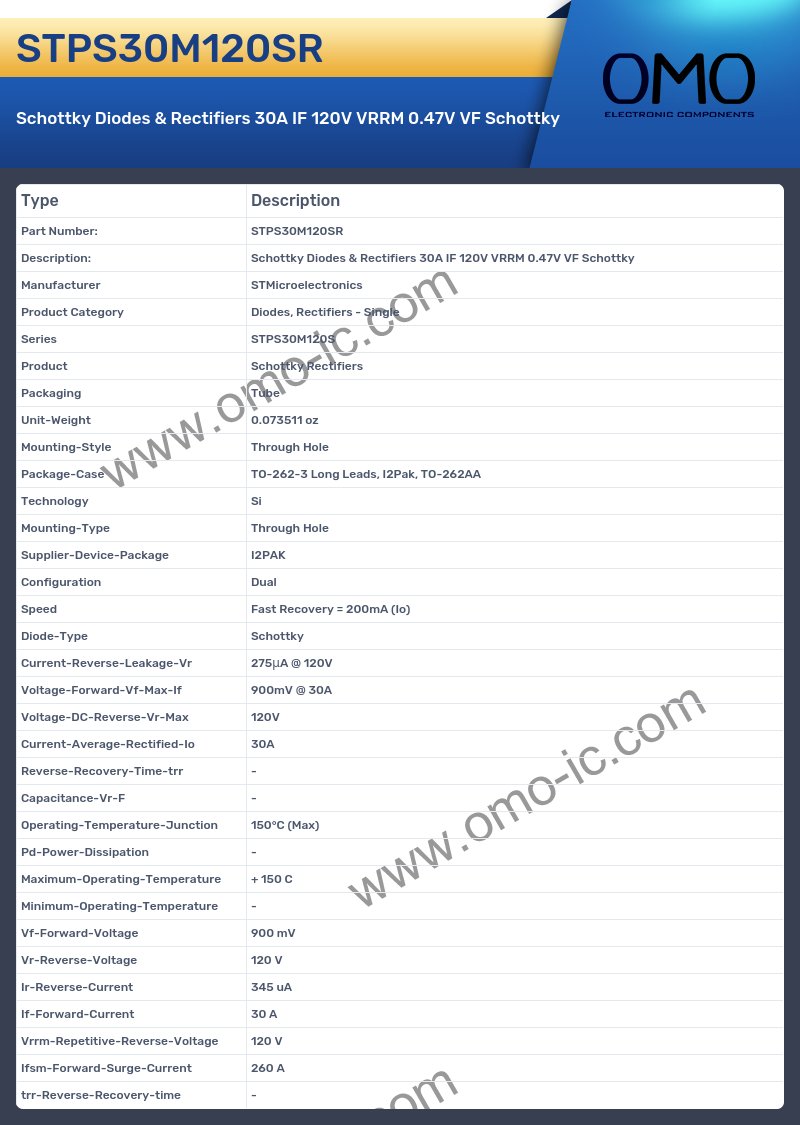

STPS30M120SR Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS30M120S
• Product Schottky Rectifiers
• Packaging Tube
• Unit-Weight 0.073511 oz
• Mounting-Style Through Hole
• Package-Case TO-262-3 Long Leads, I2Pak, TO-262AA
• Technology Si
• Mounting-Type Through Hole
• Supplier-Device-Package I2PAK
• Configuration Dual
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 275μA @ 120V
• Voltage-Forward-Vf-Max-If 900mV @ 30A
• Voltage-DC-Reverse-Vr-Max 120V
• Current-Average-Rectified-Io 30A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 150°C (Max)
• Pd-Power-Dissipation -
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature -
• Vf-Forward-Voltage 900 mV
• Vr-Reverse-Voltage 120 V
• Ir-Reverse-Current 345 uA
• If-Forward-Current 30 A
• Vrrm-Repetitive-Reverse-Voltage 120 V
• Ifsm-Forward-Surge-Current 260 A
• trr-Reverse-Recovery-time -
