STPS3045DJF-TR

STPS3045DJF-TR Overview

Product belongs to the STPS3045DJF series. This product is categorized as Schottky Rectifiers Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style 8-PowerVDFN Si is the technology used. Surface Mount mounting type Supplier device package: PowerFlat (5x6) Configuration Single Quad Anode Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 300μA @ 45V Current-Reverse-Leakage-Vr 1. Vf Max 640mV @ 30A is the Voltage-Forward; Maximum DC reverse voltage 45V The 30A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 150°C (Max) Power-off control: - Maximum operating temperature of + 175 C Minimum operating temperature: - Vf-Forward-Voltage: 640 mV VR Reverse Voltage of 45 V Ir-Reverse-Current is 300 uA. If-Forward-Current is 30 A. VRRM (45 V) Reverse Voltage 380 A IFSM Forward Surge Current The - TRR-Reverse-Recovery-time

STPS3045DJF-TR Image

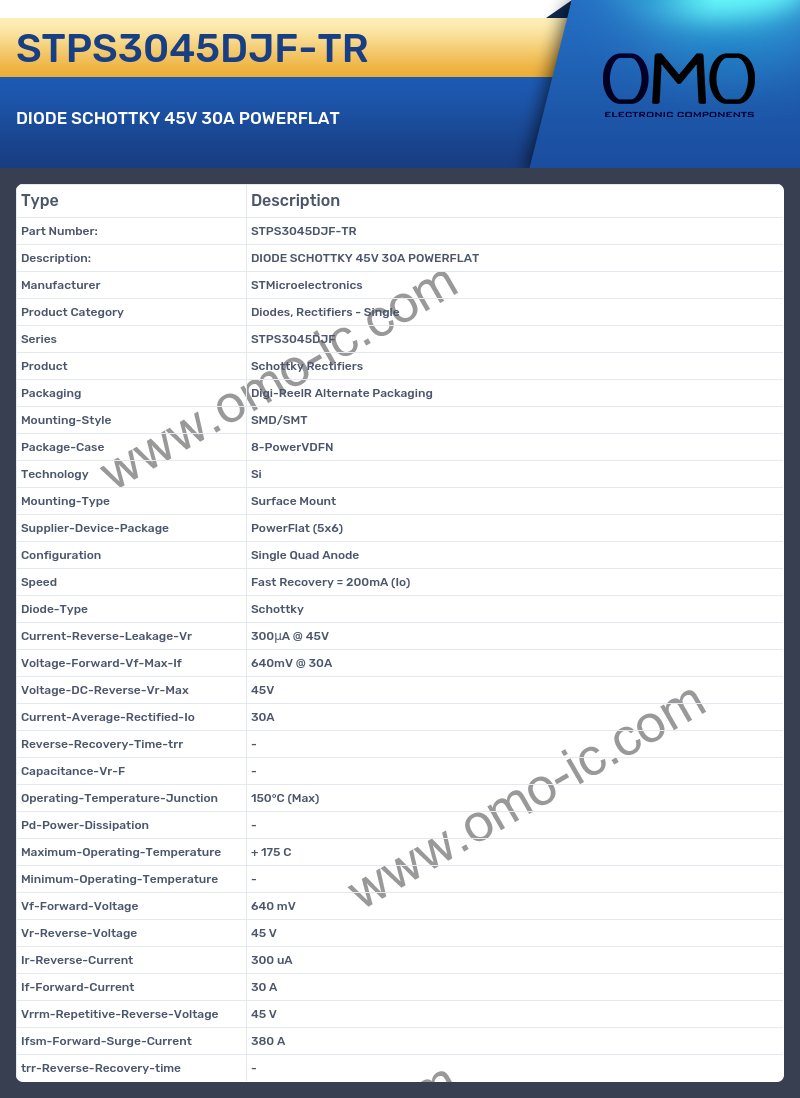

STPS3045DJF-TR Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS3045DJF
• Product Schottky Rectifiers
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case 8-PowerVDFN
• Technology Si
• Mounting-Type Surface Mount
• Supplier-Device-Package PowerFlat (5x6)
• Configuration Single Quad Anode
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 300μA @ 45V
• Voltage-Forward-Vf-Max-If 640mV @ 30A
• Voltage-DC-Reverse-Vr-Max 45V
• Current-Average-Rectified-Io 30A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 150°C (Max)
• Pd-Power-Dissipation -
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature -
• Vf-Forward-Voltage 640 mV
• Vr-Reverse-Voltage 45 V
• Ir-Reverse-Current 300 uA
• If-Forward-Current 30 A
• Vrrm-Repetitive-Reverse-Voltage 45 V
• Ifsm-Forward-Surge-Current 380 A
• trr-Reverse-Recovery-time -
