STPS2L30UF Overview

Product belongs to the STPS2L30 series. This product is categorized as Schottky Rectifiers Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style DO-221AA, SMB Flat Leads Si is the technology used. Surface Mount mounting type Supplier device package: SMBflat Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 200μA @ 30V Current-Reverse-Leakage-Vr 1. Vf Max 450mV @ 2A is the Voltage-Forward; Maximum DC reverse voltage 30V The 2A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 150°C (Max) Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 0.53 V at 4 A Ir-Reverse-Current is 200 uA. If-Forward-Current is 2 A. VRRM (30 V) Reverse Voltage 75 A IFSM Forward Surge Current

STPS2L30UF Image

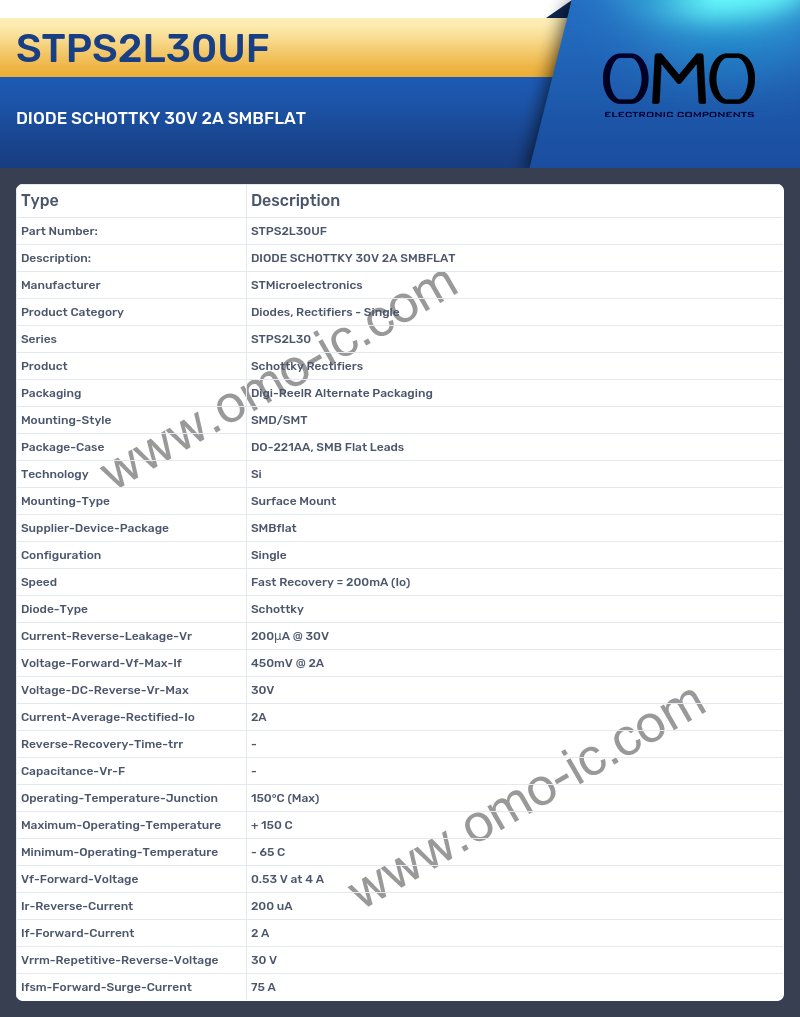

STPS2L30UF Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS2L30
• Product Schottky Rectifiers
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case DO-221AA, SMB Flat Leads
• Technology Si
• Mounting-Type Surface Mount
• Supplier-Device-Package SMBflat
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 200μA @ 30V
• Voltage-Forward-Vf-Max-If 450mV @ 2A
• Voltage-DC-Reverse-Vr-Max 30V
• Current-Average-Rectified-Io 2A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 150°C (Max)
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 0.53 V at 4 A
• Ir-Reverse-Current 200 uA
• If-Forward-Current 2 A
• Vrrm-Repetitive-Reverse-Voltage 30 V
• Ifsm-Forward-Surge-Current 75 A
