STPS20L15D

STPS20L15D Overview

Product belongs to the STPS20L15 series. This product is categorized as Schottky Diodes Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-2 Si is the technology used. Through Hole mounting type Supplier device package: TO-220AC Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 10mA @ 15V Current-Reverse-Leakage-Vr 1. Vf Max 410mV @ 19A is the Voltage-Forward; Maximum DC reverse voltage 15V The 20A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: -55°C ~ 125°C Maximum operating temperature of + 125 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 0.52 V at 40 A Ir-Reverse-Current is 6 mA. If-Forward-Current is 20 A. VRRM (15 V) Reverse Voltage 310 A IFSM Forward Surge Current

STPS20L15D Image

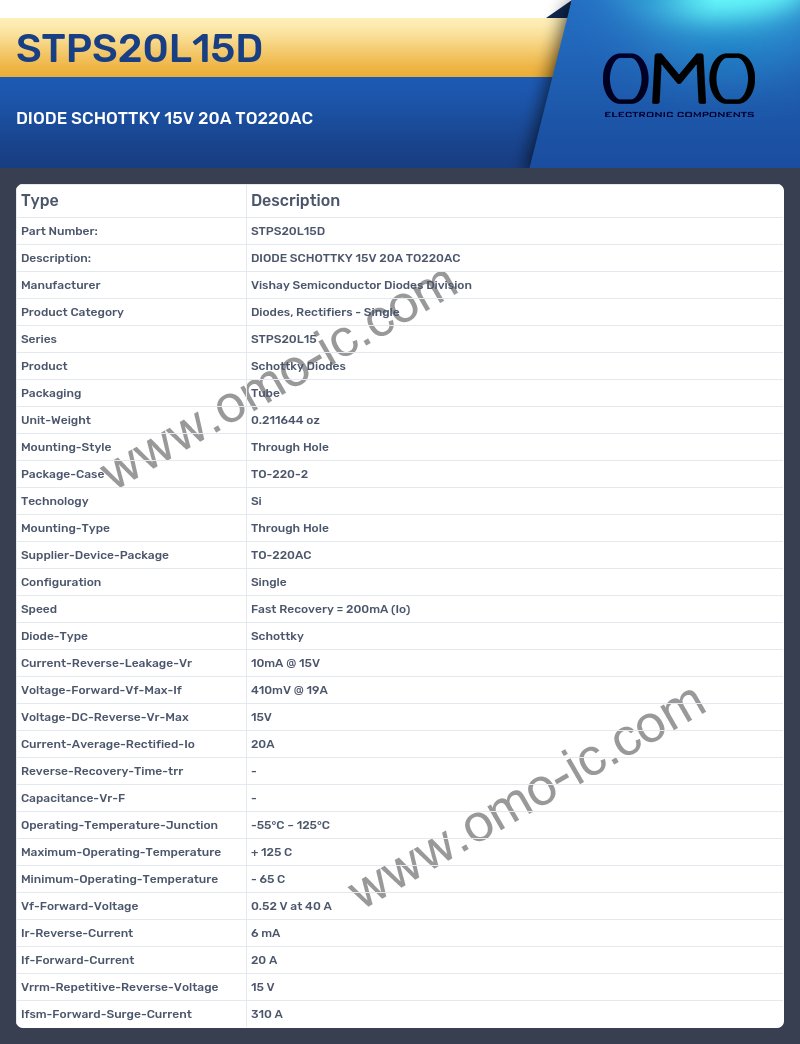

STPS20L15D Specifications

• Manufacturer Vishay Semiconductor Diodes Division
• Product Category Diodes, Rectifiers - Single
• Series STPS20L15
• Product Schottky Diodes
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-2
• Technology Si
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AC
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 10mA @ 15V
• Voltage-Forward-Vf-Max-If 410mV @ 19A
• Voltage-DC-Reverse-Vr-Max 15V
• Current-Average-Rectified-Io 20A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction -55°C ~ 125°C
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 0.52 V at 40 A
• Ir-Reverse-Current 6 mA
• If-Forward-Current 20 A
• Vrrm-Repetitive-Reverse-Voltage 15 V
• Ifsm-Forward-Surge-Current 310 A
