Product belongs to the STPS1045B-Y series. This product is categorized as Schottky Rectifiers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.009185 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 Si is the technology used. Surface Mount mounting type Supplier device package: D-Pak Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 100μA @ 45V Current-Reverse-Leakage-Vr 1. Vf Max 630mV @ 10A is the Voltage-Forward; Maximum DC reverse voltage 45V The 10A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: -40°C ~ 175°C Maximum operating temperature of + 175 C Minimum operating temperature: - 40 C Vf-Forward-Voltage: 0.84 V Ir-Reverse-Current is 15 mA. If-Forward-Current is 10 A. VRRM (45 V) Reverse Voltage 75 A IFSM Forward Surge Current

STPS1045BY-TR Image

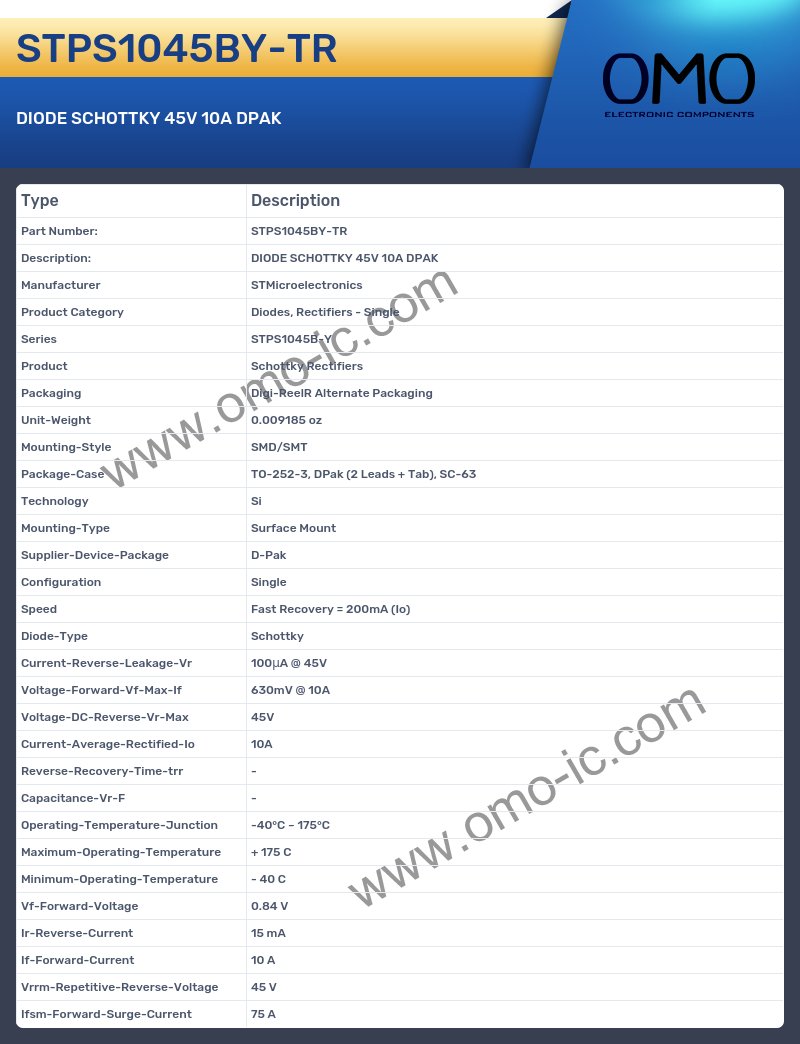

STPS1045BY-TR Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS1045B-Y
• Product Schottky Rectifiers
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.009185 oz
• Mounting-Style SMD/SMT
• Package-Case TO-252-3, DPak (2 Leads + Tab), SC-63
• Technology Si
• Mounting-Type Surface Mount
• Supplier-Device-Package D-Pak
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 100μA @ 45V
• Voltage-Forward-Vf-Max-If 630mV @ 10A
• Voltage-DC-Reverse-Vr-Max 45V
• Current-Average-Rectified-Io 10A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction -40°C ~ 175°C
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 40 C
• Vf-Forward-Voltage 0.84 V
• Ir-Reverse-Current 15 mA
• If-Forward-Current 10 A
• Vrrm-Repetitive-Reverse-Voltage 45 V
• Ifsm-Forward-Surge-Current 75 A
