STP80N70F6

STP80N70F6 Overview

Product belongs to the N-channel STripFET series. Tube is the packaging method for this product Weight of 0.011640 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Power-off control: 110 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 23 ns of 16 ns. This product has a 29 ns of 16 ns. The ID of continuous drain current is 96 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 68 V. The 8 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 102 ns This product has a 23 ns. Qg-Gate-Charge is 99 nC.

STP80N70F6 Image

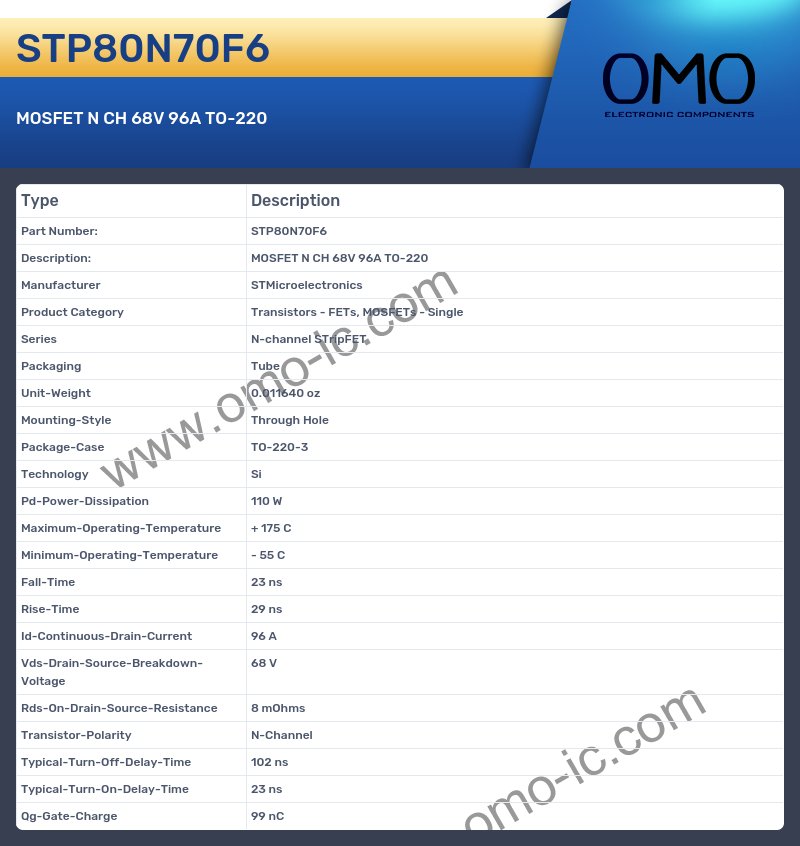

STP80N70F6 Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - FETs, MOSFETs - Single
• Series N-channel STripFET
• Packaging Tube
• Unit-Weight 0.011640 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Technology Si
• Pd-Power-Dissipation 110 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 23 ns
• Rise-Time 29 ns
• Id-Continuous-Drain-Current 96 A
• Vds-Drain-Source-Breakdown-Voltage 68 V
• Rds-On-Drain-Source-Resistance 8 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 102 ns
• Typical-Turn-On-Delay-Time 23 ns
• Qg-Gate-Charge 99 nC
