STP160N75F3

STP160N75F3 Overview

Product belongs to the N-channel STripFET series. Tube is the packaging method for this product Weight of 0.011640 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 330 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 15 ns of 16 ns. This product has a 65 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 120 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 75 V. The 4 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 100 ns This product has a 22 ns. This product operates in Enhancement channel mode for optimal performance.

STP160N75F3 Image

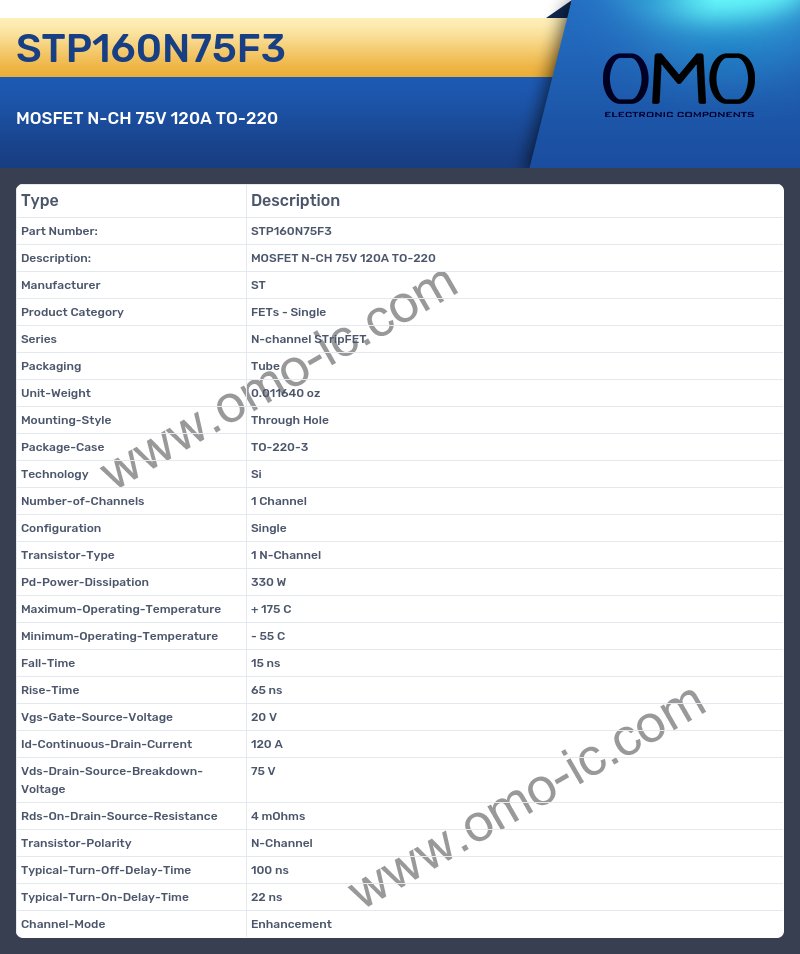

STP160N75F3 Specifications

• Manufacturer ST
• Product Category FETs - Single
• Series N-channel STripFET
• Packaging Tube
• Unit-Weight 0.011640 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 330 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 15 ns
• Rise-Time 65 ns
• Vgs-Gate-Source-Voltage 20 V
• Id-Continuous-Drain-Current 120 A
• Vds-Drain-Source-Breakdown-Voltage 75 V
• Rds-On-Drain-Source-Resistance 4 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 100 ns
• Typical-Turn-On-Delay-Time 22 ns
• Channel-Mode Enhancement
