STP10P6F6

STP10P6F6 Overview

Product belongs to the P-channel STripFET series. Tube is the packaging method for this product Weight of 0.011640 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 P-Channel Power-off control: 35 W Maximum operating temperature of + 175 C This product has a 10 ns of 16 ns. This product has a 7 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 10 A. This product has a Vds-Drain-Source-Breakdown-Voltageof - 60 V. This product has a 4 V Vgs-th gate-source threshold voltage for efficient power management. The 180 mOhms for this product is 12 Ohms. The transistor polarity is P-Channel. 'Typical-Turn-Off-Delay-Time' of 16.5 ns This product has a 7.5 ns. Qg-Gate-Charge is 7 nC.

STP10P6F6 Image

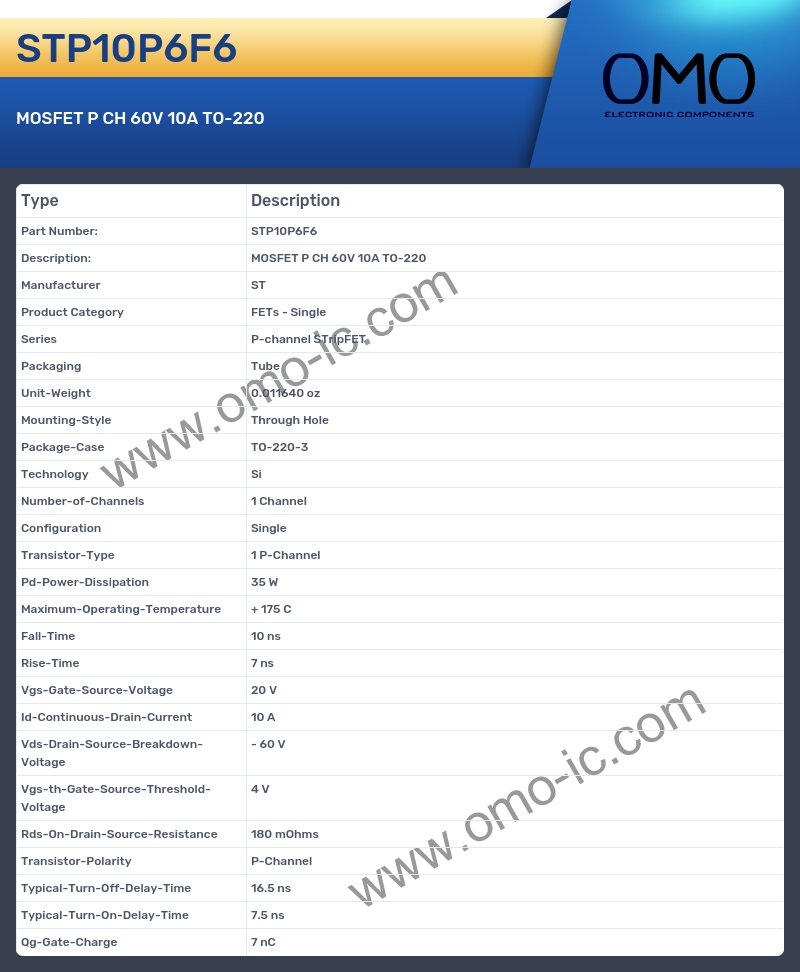

STP10P6F6 Specifications

• Manufacturer ST
• Product Category FETs - Single
• Series P-channel STripFET
• Packaging Tube
• Unit-Weight 0.011640 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Transistor-Type 1 P-Channel
• Pd-Power-Dissipation 35 W
• Maximum-Operating-Temperature + 175 C
• Fall-Time 10 ns
• Rise-Time 7 ns
• Vgs-Gate-Source-Voltage 20 V
• Id-Continuous-Drain-Current 10 A
• Vds-Drain-Source-Breakdown-Voltage - 60 V
• Vgs-th-Gate-Source-Threshold-Voltage 4 V
• Rds-On-Drain-Source-Resistance 180 mOhms
• Transistor-Polarity P-Channel
• Typical-Turn-Off-Delay-Time 16.5 ns
• Typical-Turn-On-Delay-Time 7.5 ns
• Qg-Gate-Charge 7 nC
