| Mfr. #: | STN9360 |
|---|---|
| Өндіруші: | STMicroelectronics |
| Сипаттама: | Bipolar Transistors - BJT Hi Vltg fast-switch PNP pwr transisto |
| Өміршеңдік кезең: | Осы өндірушіден жаңа. |
| Деректер тізімі: | STN9360 Деректер тізімі |
Product belongs to the 500V to 1000V Transistors series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.006632 oz SMD/SMT Mounting-Style TO-261-4, TO-261AA Surface Mount mounting type Supplier device package: SOT-223 Transistor type: PNP Maximum current collector Ic is 500mA . Maximum collector-emitter breakdown voltage of 600V DC current gain minimum (hFE) of Ic/Vce at 120 @ 20mA, 5V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 500mV @ 10mA, 100mA Power-off control: 1.6 W Maximum operating temperature of + 150 C Rated VCEO up to - 600 V The transistor polarity is PNP. Saturation voltage between collector and emitter is - 0.5 V - 7 V rating of 5 V Max DC collector current: - 0.5 A This product is capable of handling a - 0.5 V continuous collector current. Minimum hfe for DC collector-base gain is 200. 200 of 605.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

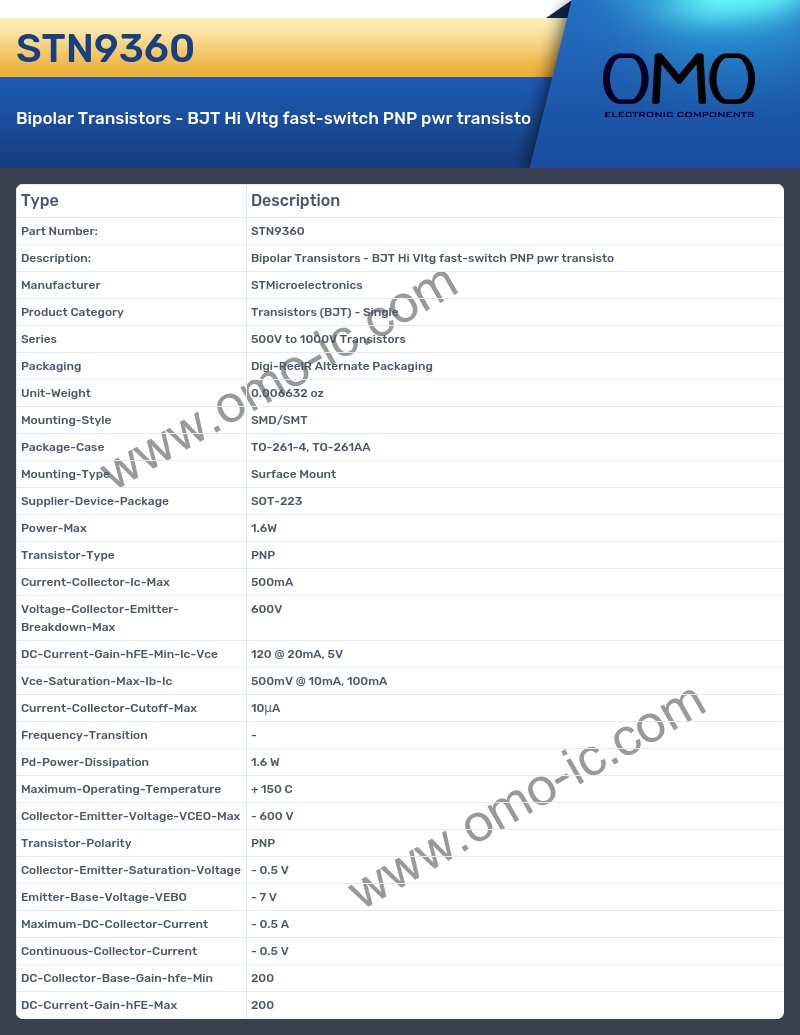

STN9360 Specifications
