STM32F417IEH6

STM32F417IEH6 Overview

Product belongs to the STM32 F4 series. Tray is the packaging method for this product SMD/SMT Mounting-Style Trade name: STM32. BGA-176 Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: 176-UFBGA (10x10) This product has 140 I/O ports for versatile connectivity. Operating frequency: 168MHz Program memory type: FLASH CAN, DCMI, EBI/EMI, Ethernet, I2C, IrDA, LIN, SPI, UART/USART, USB OTG interface Supply Voltage: 1.8 V ~ 3.6 V 32-Bit architecture Internal oscillator type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 1.8 V to 3.6 V supply voltage for reliable performance. CAN I2C I2S SPI UART interface type Processor Core: ARM Cortex M4 This product is powered by the ARM Cortex-M Processor-Series, providing high performance and efficiency. The 32 bit. Maximum clock frequency of 168 MHz Number of ADC Channels: 24 This product has 140 I/O connections. This product has a 192 kB data RAM size, providing ample storage for complex applications. This product features 10 Timer number of timers and counters. This product features a high-precision 12 bit, ensuring accurate data conversion. This product utilizes SRAM, providing fast and efficient data storage.

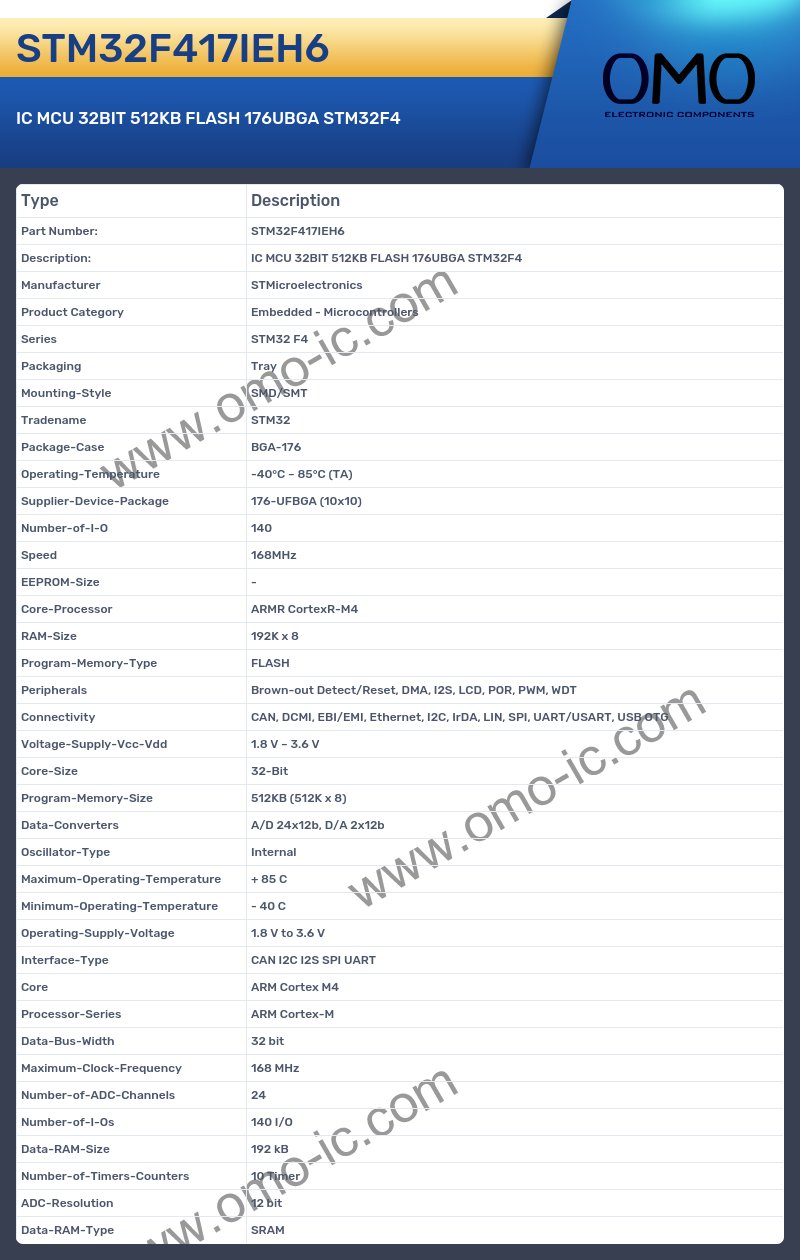

STM32F417IEH6 Image

STM32F417IEH6 Specifications

• Manufacturer STMicroelectronics
• Product Category Embedded - Microcontrollers
• Series STM32 F4
• Packaging Tray
• Mounting-Style SMD/SMT
• Tradename STM32
• Package-Case BGA-176
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package 176-UFBGA (10x10)
• Number-of-I-O 140
• Speed 168MHz
• EEPROM-Size -
• Core-Processor ARMR CortexR-M4
• RAM-Size 192K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
• Connectivity CAN, DCMI, EBI/EMI, Ethernet, I2C, IrDA, LIN, SPI, UART/USART, USB OTG
• Voltage-Supply-Vcc-Vdd 1.8 V ~ 3.6 V
• Core-Size 32-Bit
• Program-Memory-Size 512KB (512K x 8)
• Data-Converters A/D 24x12b, D/A 2x12b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.8 V to 3.6 V
• Interface-Type CAN I2C I2S SPI UART
• Core ARM Cortex M4
• Processor-Series ARM Cortex-M
• Data-Bus-Width 32 bit
• Maximum-Clock-Frequency 168 MHz
• Number-of-ADC-Channels 24
• Number-of-I-Os 140 I/O
• Data-RAM-Size 192 kB
• Number-of-Timers-Counters 10 Timer
• ADC-Resolution 12 bit
• Data-RAM-Type SRAM
