STLQ015M21R

STLQ015M21R Overview

Product belongs to the - series. This product is categorized as LDO Regulators Type: Linear Voltage Regulator Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001058 oz SMD/SMT Mounting-Style SOT23-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-23-5 Tolerance of 2 % Up to 5.5V voltage input Number-of-Outputs: 1 Output Output voltage: 2.1V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 2.1 V 1.4 uA is 92 nA. Maximum Input Voltage: 5.5 V Output current: 150 mA The product's 1.5 V is 5.1 V. Load regulation is 0.002 %/mA. The voltage regulation accuracy of this product is 2 %. The 112 mV. This product's 0.01 %/V is 0.01 %/V. The product's 40 dB is -20 dB. This product has an - of 2.7 V to 5.5 V.

STLQ015M21R Image

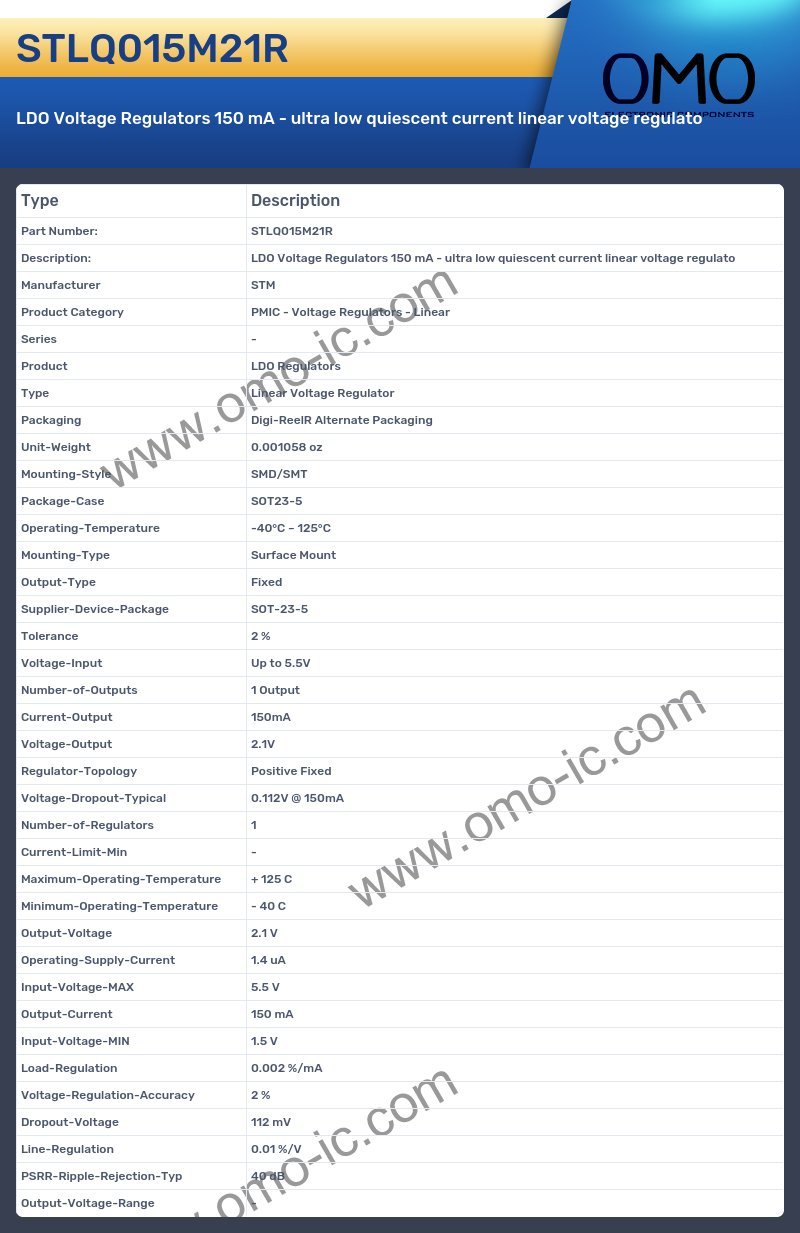

STLQ015M21R Specifications

• Manufacturer STM
• Product Category PMIC - Voltage Regulators - Linear
• Series -
• Product LDO Regulators
• Type Linear Voltage Regulator
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001058 oz
• Mounting-Style SMD/SMT
• Package-Case SOT23-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-23-5
• Tolerance 2 %
• Voltage-Input Up to 5.5V
• Number-of-Outputs 1 Output
• Current-Output 150mA
• Voltage-Output 2.1V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.112V @ 150mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 2.1 V
• Operating-Supply-Current 1.4 uA
• Input-Voltage-MAX 5.5 V
• Output-Current 150 mA
• Input-Voltage-MIN 1.5 V
• Load-Regulation 0.002 %/mA
• Voltage-Regulation-Accuracy 2 %
• Dropout-Voltage 112 mV
• Line-Regulation 0.01 %/V
• PSRR-Ripple-Rejection-Typ 40 dB
• Output-Voltage-Range -
