STL23NM50N

STL23NM50N Overview

Product belongs to the N-channel MDmesh series. Reel is the packaging method for this product SMD/SMT Mounting-Style PowerFlat-8 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 3 W Maximum operating temperature of + 150 C This product has a 29 ns of 16 ns. This product has a 19 ns of 16 ns. This product's 25 V. The ID of continuous drain current is 14 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 550 V. This product has a 3 V Vgs-th gate-source threshold voltage for efficient power management. The 210 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 71 ns This product has a 6.6 ns. Qg-Gate-Charge is 45 nC.

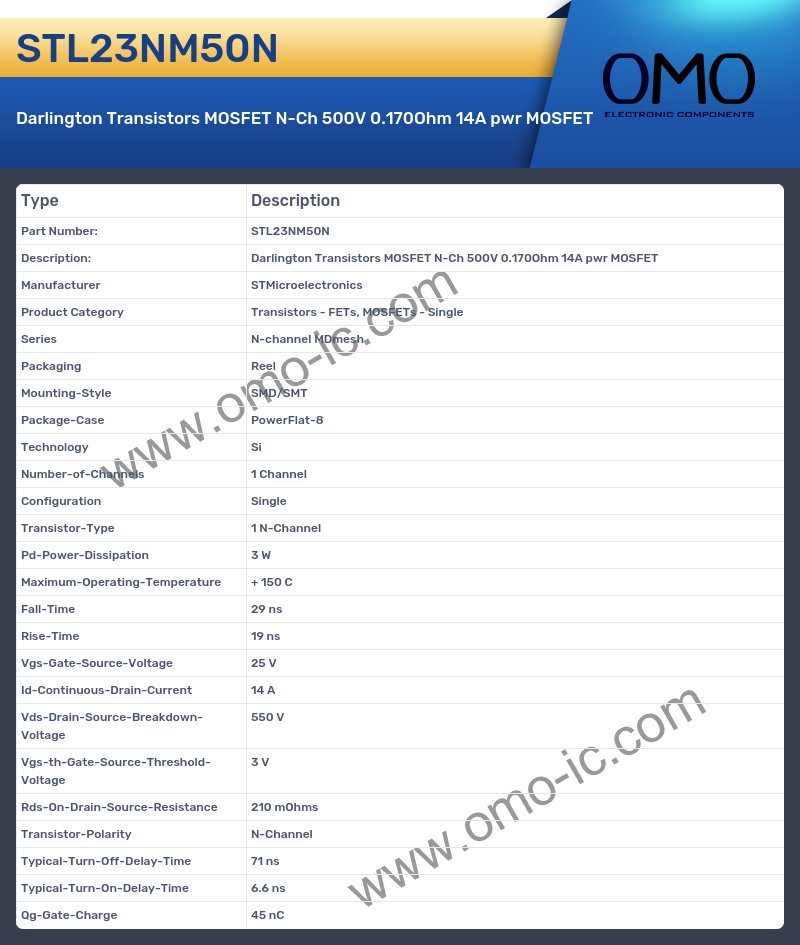

STL23NM50N Image

STL23NM50N Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - FETs, MOSFETs - Single
• Series N-channel MDmesh
• Packaging Reel
• Mounting-Style SMD/SMT
• Package-Case PowerFlat-8
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 3 W
• Maximum-Operating-Temperature + 150 C
• Fall-Time 29 ns
• Rise-Time 19 ns
• Vgs-Gate-Source-Voltage 25 V
• Id-Continuous-Drain-Current 14 A
• Vds-Drain-Source-Breakdown-Voltage 550 V
• Vgs-th-Gate-Source-Threshold-Voltage 3 V
• Rds-On-Drain-Source-Resistance 210 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 71 ns
• Typical-Turn-On-Delay-Time 6.6 ns
• Qg-Gate-Charge 45 nC
