STL120N8F7

STL120N8F7 Overview

RoHS compliant with Details Input bias current of SMD/SMT Package type is PowerFlat-8 Single 1 Channel for basic signal processing The transistor polarity is N-Channel. 80 V is the Vds - Drain-Source Breakdown Voltage Continuous Drain Current identified as 120 A; The Rds On - Drain-Source Resistance of the product is 4.4 mOhms. The Vgs - Gate-Source Voltage attribute for this product is +/- 20 V. The 4 V Gate-Source Threshold Voltage of Vgs th; 60 nC Gate Charge of Qg; Maximum Operating Temperature: + 175 C Si is the technology used. Enhancement Channel Mode Fall Time of 15.4 ns - 55 C minimum operating temperature The power dissipation is 140 W. 16.8 ns Rise Time 1 N-Channel Transistor Type Typical Turn-Off Delay Time of 60 ns; The 34.5 ns typical turn-on delay time

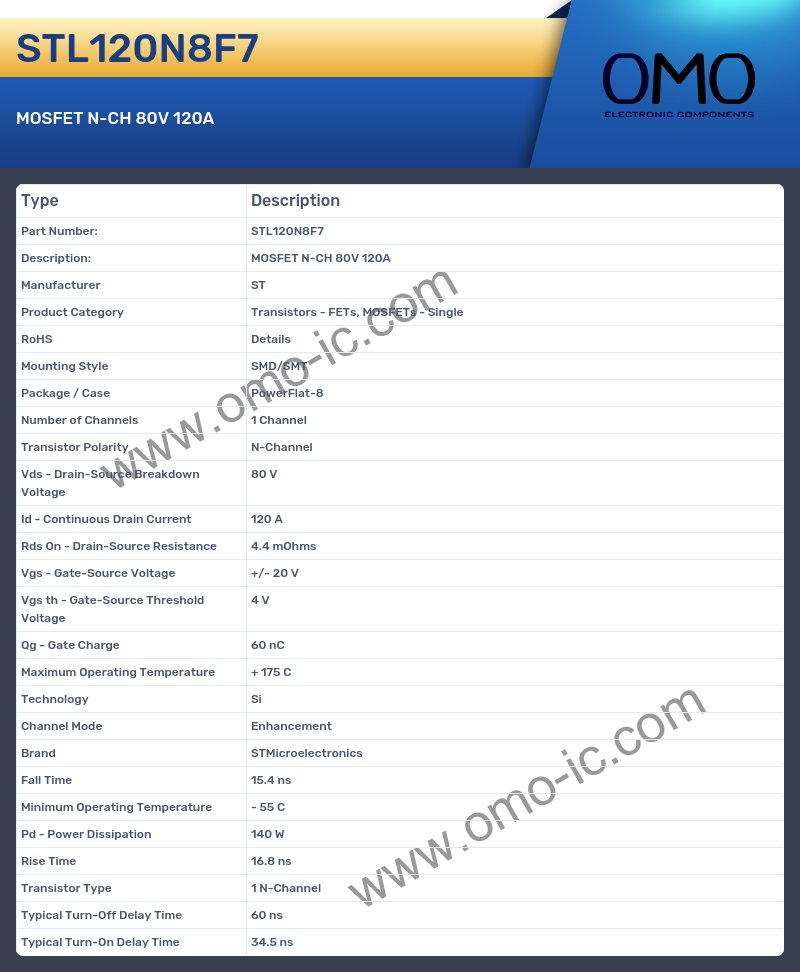

STL120N8F7 Image

STL120N8F7 Specifications

• Manufacturer ST
• Product Category Transistors - FETs, MOSFETs - Single
• RoHS Details
• Mounting Style SMD/SMT
• Package / Case PowerFlat-8
• Number of Channels 1 Channel
• Transistor Polarity N-Channel
• Vds - Drain-Source Breakdown Voltage 80 V
• Id - Continuous Drain Current 120 A
• Rds On - Drain-Source Resistance 4.4 mOhms
• Vgs - Gate-Source Voltage +/- 20 V
• Vgs th - Gate-Source Threshold Voltage 4 V
• Qg - Gate Charge 60 nC
• Maximum Operating Temperature + 175 C
• Technology Si
• Channel Mode Enhancement
• Brand STMicroelectronics
• Fall Time 15.4 ns
• Minimum Operating Temperature - 55 C
• Pd - Power Dissipation 140 W
• Rise Time 16.8 ns
• Transistor Type 1 N-Channel
• Typical Turn-Off Delay Time 60 ns
• Typical Turn-On Delay Time 34.5 ns
