STGPL6NC60DI

STGPL6NC60DI Overview

Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 0.081130 oz Through Hole Mounting-Style TO-220-3 Full Pack The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220FP Maximum current collector Ic is 14A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 18A. The Vce-on-Max-Vge-Ic is rated at 2.9V @ 15V, 3A. 6.7ns/46ns Td-on-off at 25°C; Operating temperature: 390V, 3A, 10 Ohm, 15V Power-off control: 56 W Rated VCEO up to 600 V Saturation voltage between collector and emitter is 1.9 V 14 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: 20 V

STGPL6NC60DI Image

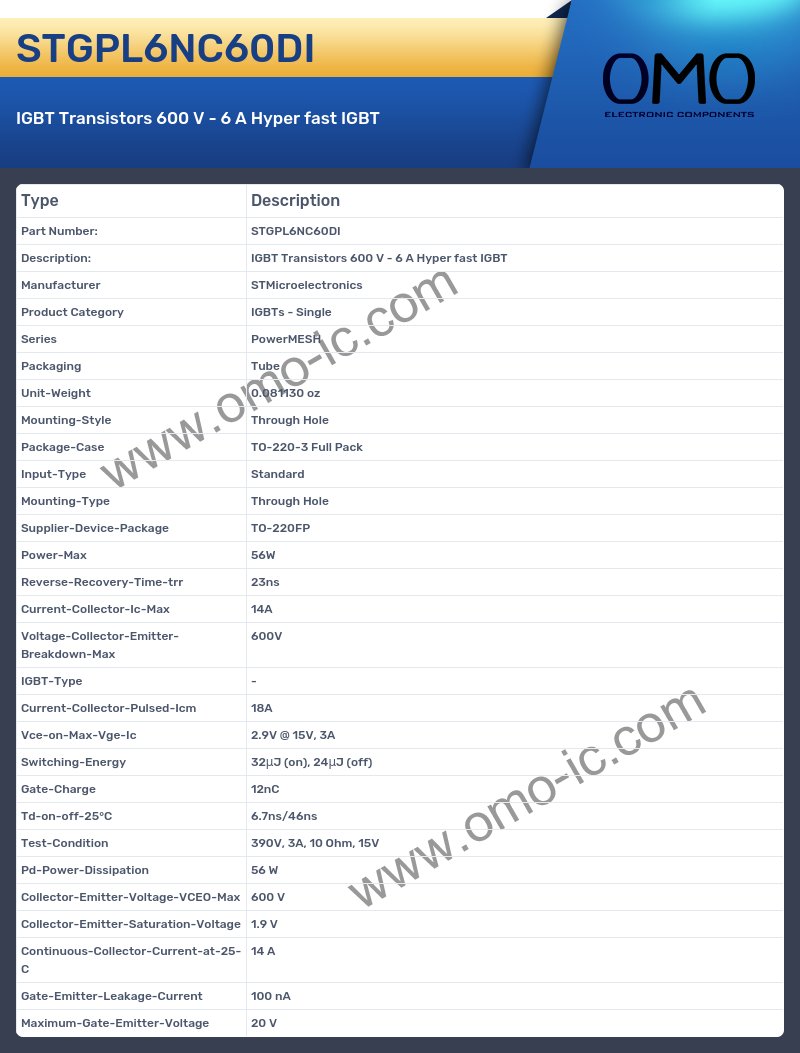

STGPL6NC60DI Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Tube
• Unit-Weight 0.081130 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3 Full Pack
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220FP
• Power-Max 56W
• Reverse-Recovery-Time-trr 23ns
• Current-Collector-Ic-Max 14A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 18A
• Vce-on-Max-Vge-Ic 2.9V @ 15V, 3A
• Switching-Energy 32μJ (on), 24μJ (off)
• Gate-Charge 12nC
• Td-on-off-25°C 6.7ns/46ns
• Test-Condition 390V, 3A, 10 Ohm, 15V
• Pd-Power-Dissipation 56 W
• Collector-Emitter-Voltage-VCEO-Max 600 V
• Collector-Emitter-Saturation-Voltage 1.9 V
• Continuous-Collector-Current-at-25-C 14 A
• Gate-Emitter-Leakage-Current 100 nA
• Maximum-Gate-Emitter-Voltage 20 V
