STGP3NB60F

STGP3NB60F Overview

Product belongs to the PowerMESH series. Tube is the packaging method for this product TO-220-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220AB Maximum current collector Ic is 6A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 24A. The Vce-on-Max-Vge-Ic is rated at 2.4V @ 15V, 3A. 12.5ns/105ns Td-on-off at 25°C; Operating temperature: 480V, 3A, 10 Ohm, 15V

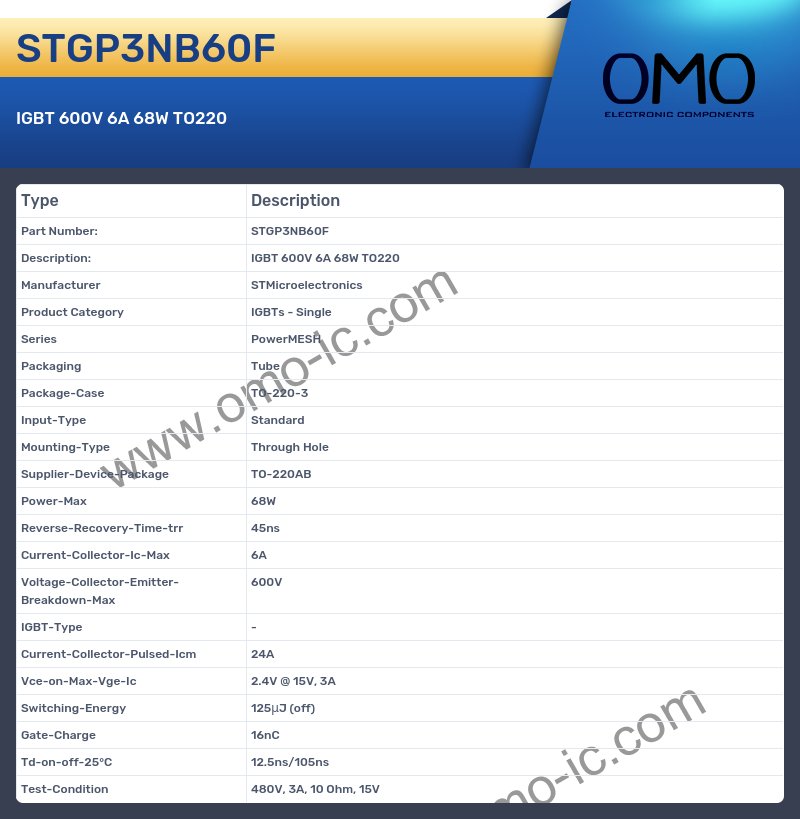

STGP3NB60F Image

STGP3NB60F Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Tube
• Package-Case TO-220-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AB
• Power-Max 68W
• Reverse-Recovery-Time-trr 45ns
• Current-Collector-Ic-Max 6A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 24A
• Vce-on-Max-Vge-Ic 2.4V @ 15V, 3A
• Switching-Energy 125μJ (off)
• Gate-Charge 16nC
• Td-on-off-25°C 12.5ns/105ns
• Test-Condition 480V, 3A, 10 Ohm, 15V

STGP3NB60F FAQ

• A: Is the cutoff frequency of the product Series?

  Q: Yes, the product's Series is indeed PowerMESH

• A: What is the Packaging of the product?

  Q: The Packaging of the product is Tube.

• A: What is the Package-Case of the product?

  Q: The Package-Case of the product is TO-220-3.

• A: At what frequency does the Input-Type?

  Q: The product Input-Type is Standard.

• A: At what frequency does the Mounting-Type?

  Q: The product Mounting-Type is Through Hole.

• A: At what frequency does the Supplier-Device-Package?

  Q: The product Supplier-Device-Package is TO-220AB.

• A: At what frequency does the Current-Collector-Ic-Max?

  Q: The product Current-Collector-Ic-Max is 6A.

• A: What is the Voltage-Collector-Emitter-Breakdown-Max of the product?

  Q: The Voltage-Collector-Emitter-Breakdown-Max of the product is 600V.

• A: At what frequency does the Current-Collector-Pulsed-Icm?

  Q: The product Current-Collector-Pulsed-Icm is 24A.

• A: Is the cutoff frequency of the product Vce-on-Max-Vge-Ic?

  Q: Yes, the product's Vce-on-Max-Vge-Ic is indeed 2.4V @ 15V, 3A

• A: Is the cutoff frequency of the product Td-on-off-25°C?

  Q: Yes, the product's Td-on-off-25°C is indeed 12.5ns/105ns

• A: At what frequency does the Test-Condition?

  Q: The product Test-Condition is 480V, 3A, 10 Ohm, 15V.
