STGP3HF60HD

STGP3HF60HD Overview

Product belongs to the - series. Tube is the packaging method for this product TO-220-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220 Maximum current collector Ic is 7.5A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 18A. The Vce-on-Max-Vge-Ic is rated at 2.95V @ 15V, 1.5A. 11ns/60ns Td-on-off at 25°C; Operating temperature: 400V, 1.5A, 100 Ohm, 15V

STGP3HF60HD Image

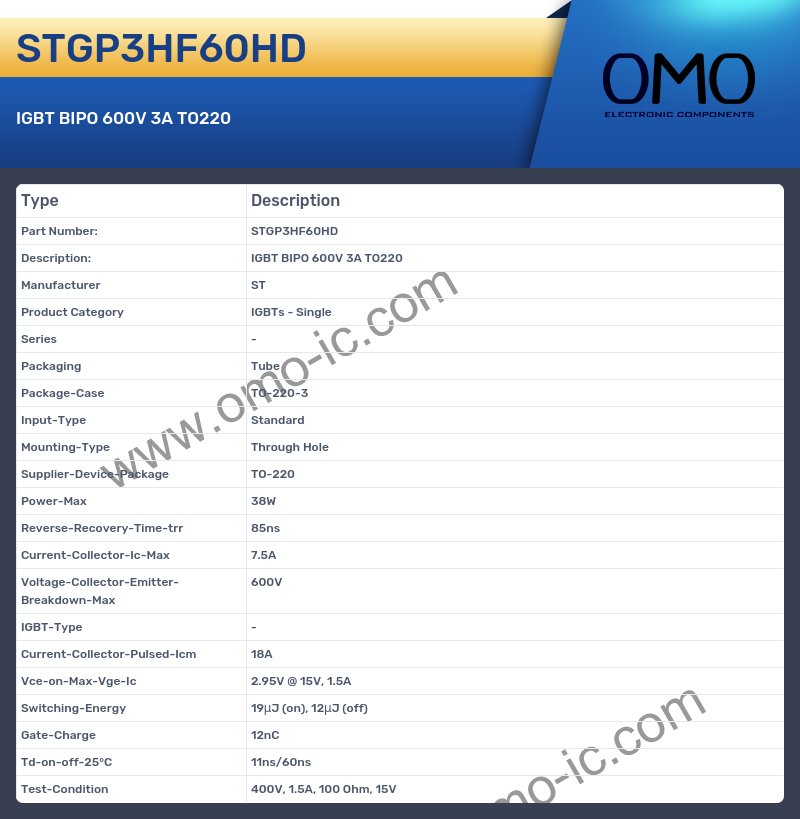

STGP3HF60HD Specifications

• Manufacturer ST
• Product Category IGBTs - Single
• Series -
• Packaging Tube
• Package-Case TO-220-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220
• Power-Max 38W
• Reverse-Recovery-Time-trr 85ns
• Current-Collector-Ic-Max 7.5A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 18A
• Vce-on-Max-Vge-Ic 2.95V @ 15V, 1.5A
• Switching-Energy 19μJ (on), 12μJ (off)
• Gate-Charge 12nC
• Td-on-off-25°C 11ns/60ns
• Test-Condition 400V, 1.5A, 100 Ohm, 15V
