STGD6NC60HT4

STGD6NC60HT4 Overview

Product belongs to the PowerMESH series. Digi-ReelR is the packaging method for this product TO-252-3, DPak (2 Leads + Tab), SC-63 The Standard for this product is CMOS/TTL. Surface Mount mounting type Supplier device package: D-Pak Maximum current collector Ic is 15A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 21A. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 3A. 12ns/76ns Td-on-off at 25°C; Operating temperature: 390V, 3A, 10 Ohm, 15V

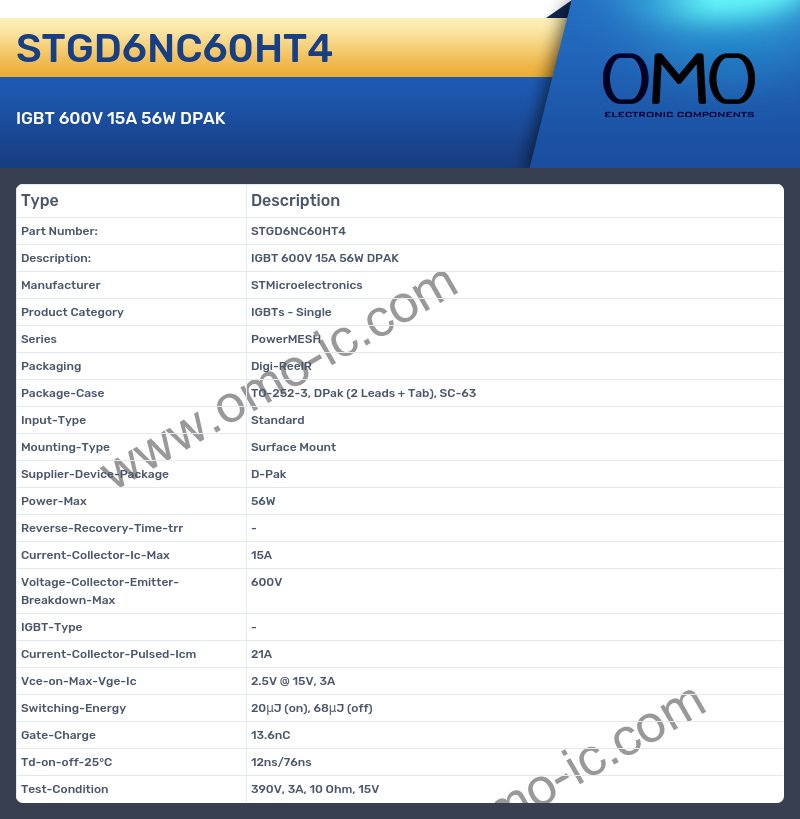

STGD6NC60HT4 Image

STGD6NC60HT4 Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Digi-ReelR
• Package-Case TO-252-3, DPak (2 Leads + Tab), SC-63
• Input-Type Standard
• Mounting-Type Surface Mount
• Supplier-Device-Package D-Pak
• Power-Max 56W
• Reverse-Recovery-Time-trr -
• Current-Collector-Ic-Max 15A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 21A
• Vce-on-Max-Vge-Ic 2.5V @ 15V, 3A
• Switching-Energy 20μJ (on), 68μJ (off)
• Gate-Charge 13.6nC
• Td-on-off-25°C 12ns/76ns
• Test-Condition 390V, 3A, 10 Ohm, 15V

STGD6NC60HT4 FAQ

• A: What is the Series of the product?

  Q: The Series of the product is PowerMESH.

• A: What is the Packaging of the product?

  Q: The Packaging of the product is Digi-ReelR.

• A: At what frequency does the Package-Case?

  Q: The product Package-Case is TO-252-3, DPak (2 Leads + Tab), SC-63.

• A: At what frequency does the Input-Type?

  Q: The product Input-Type is Standard.

• A: At what frequency does the Mounting-Type?

  Q: The product Mounting-Type is Surface Mount.

• A: Is the cutoff frequency of the product Supplier-Device-Package?

  Q: Yes, the product's Supplier-Device-Package is indeed D-Pak

• A: At what frequency does the Current-Collector-Ic-Max?

  Q: The product Current-Collector-Ic-Max is 15A.

• A: At what frequency does the Voltage-Collector-Emitter-Breakdown-Max?

  Q: The product Voltage-Collector-Emitter-Breakdown-Max is 600V.

• A: What is the Current-Collector-Pulsed-Icm of the product?

  Q: The Current-Collector-Pulsed-Icm of the product is 21A.

• A: At what frequency does the Vce-on-Max-Vge-Ic?

  Q: The product Vce-on-Max-Vge-Ic is 2.5V @ 15V, 3A.

• A: What is the Td-on-off-25°C of the product?

  Q: The Td-on-off-25°C of the product is 12ns/76ns.

• A: At what frequency does the Test-Condition?

  Q: The product Test-Condition is 390V, 3A, 10 Ohm, 15V.
