STGD14NC60KT4

STGD14NC60KT4 Overview

Product belongs to the PowerMESH series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 The Standard for this product is CMOS/TTL. Surface Mount mounting type Supplier device package: D-Pak Configuration Single Maximum current collector Ic is 25A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at -. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 7A. 22.5ns/116ns Td-on-off at 25°C; Operating temperature: 390V, 7A, 10 Ohm, 15V Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 25 A Collector Current of Continuity;

STGD14NC60KT4 Image

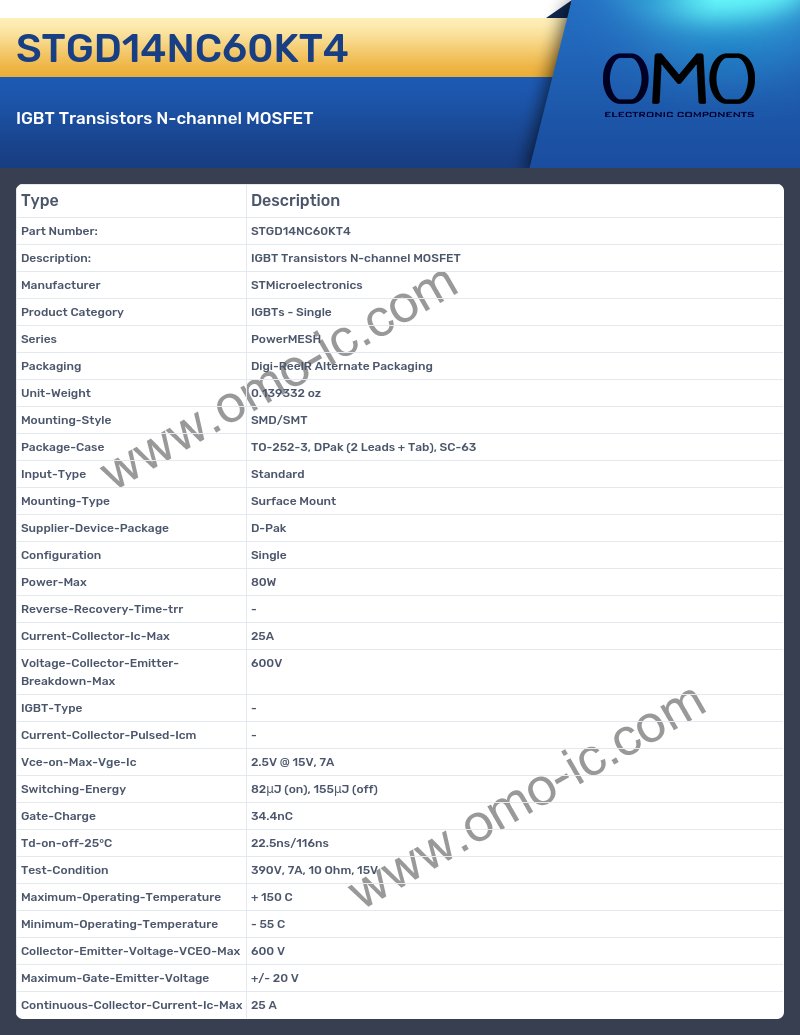

STGD14NC60KT4 Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.139332 oz
• Mounting-Style SMD/SMT
• Package-Case TO-252-3, DPak (2 Leads + Tab), SC-63
• Input-Type Standard
• Mounting-Type Surface Mount
• Supplier-Device-Package D-Pak
• Configuration Single
• Power-Max 80W
• Reverse-Recovery-Time-trr -
• Current-Collector-Ic-Max 25A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm -
• Vce-on-Max-Vge-Ic 2.5V @ 15V, 7A
• Switching-Energy 82μJ (on), 155μJ (off)
• Gate-Charge 34.4nC
• Td-on-off-25°C 22.5ns/116ns
• Test-Condition 390V, 7A, 10 Ohm, 15V
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Voltage-VCEO-Max 600 V
• Maximum-Gate-Emitter-Voltage +/- 20 V
• Continuous-Collector-Current-Ic-Max 25 A
