STGB20NB32LZ

STGB20NB32LZ Overview

Product belongs to the PowerMESH series. Tube is the packaging method for this product TO-263-3, D2Pak (2 Leads + Tab), TO-263AB The Standard for this product is CMOS/TTL. Surface Mount mounting type Supplier device package: D2PAK Maximum current collector Ic is 40A . Maximum collector-emitter breakdown voltage of 375V The Current-Collector-Pulsed-Icm is rated at 80A. The Vce-on-Max-Vge-Ic is rated at 2V @ 4.5V, 20A. 2.3μs/11.5μs Td-on-off at 25°C; Operating temperature: 250V, 20A, 1 kOhm, 4.5V

STGB20NB32LZ Image

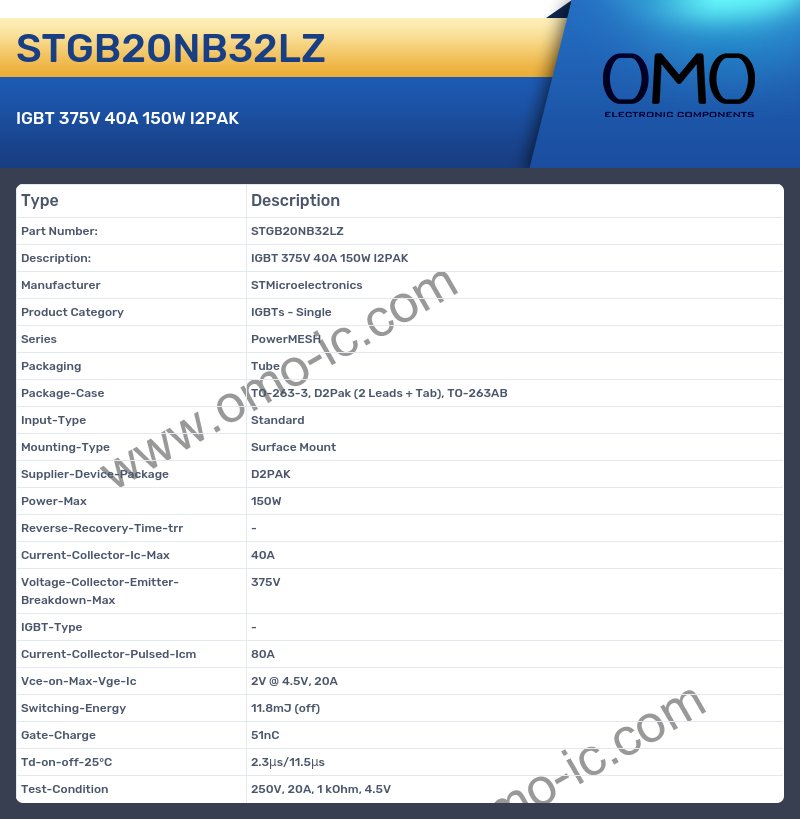

STGB20NB32LZ Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Tube
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Input-Type Standard
• Mounting-Type Surface Mount
• Supplier-Device-Package D2PAK
• Power-Max 150W
• Reverse-Recovery-Time-trr -
• Current-Collector-Ic-Max 40A
• Voltage-Collector-Emitter-Breakdown-Max 375V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 80A
• Vce-on-Max-Vge-Ic 2V @ 4.5V, 20A
• Switching-Energy 11.8mJ (off)
• Gate-Charge 51nC
• Td-on-off-25°C 2.3μs/11.5μs
• Test-Condition 250V, 20A, 1 kOhm, 4.5V
