STGB10H60DF

STGB10H60DF Overview

Product belongs to the 600-650V IGBTs series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.070548 oz SMD/SMT Mounting-Style TO-263-3, D2Pak (2 Leads + Tab), TO-263AB The Standard for this product is CMOS/TTL. Surface Mount mounting type Supplier device package: D2PAK Configuration Single Maximum current collector Ic is 20A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 40A. The Vce-on-Max-Vge-Ic is rated at 1.95V @ 15V, 10A. 19.5ns/103ns Td-on-off at 25°C; Operating temperature: 400V, 10A, 10 Ohm, 15V Power-off control: 115 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 1.5 V 20 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: +/- 20 V

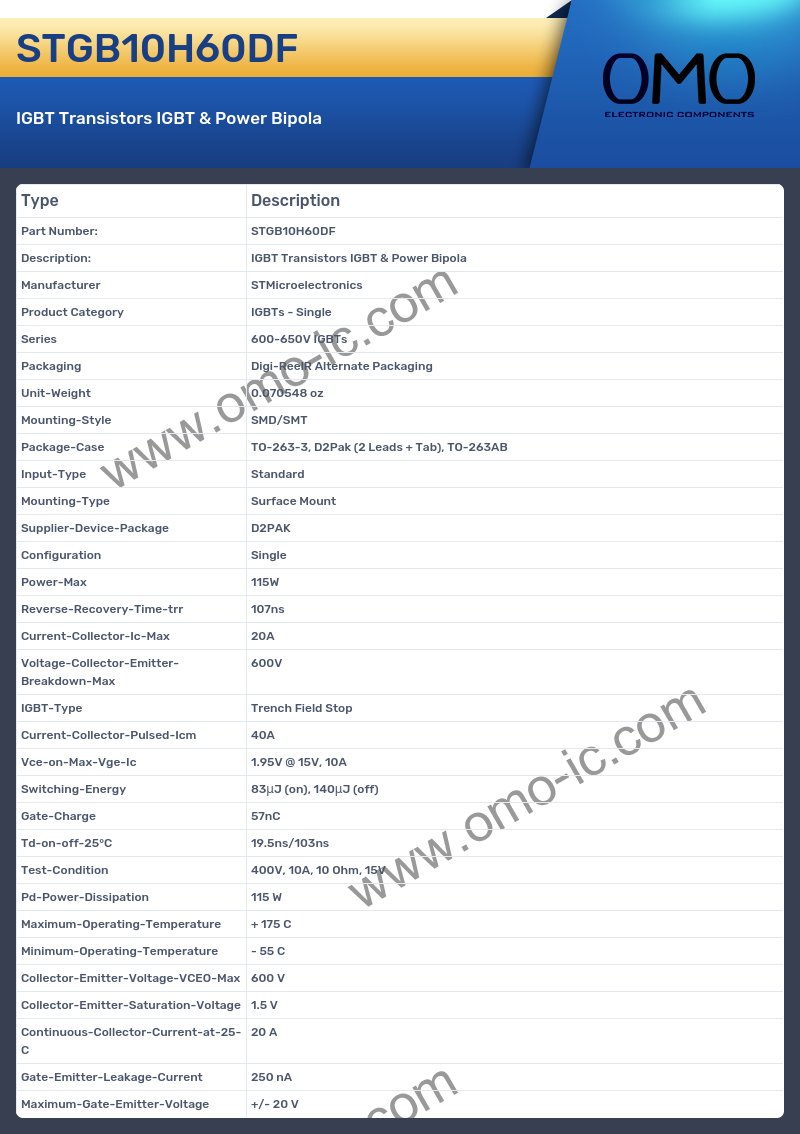

STGB10H60DF Image

STGB10H60DF Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series 600-650V IGBTs
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.070548 oz
• Mounting-Style SMD/SMT
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Input-Type Standard
• Mounting-Type Surface Mount
• Supplier-Device-Package D2PAK
• Configuration Single
• Power-Max 115W
• Reverse-Recovery-Time-trr 107ns
• Current-Collector-Ic-Max 20A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type Trench Field Stop
• Current-Collector-Pulsed-Icm 40A
• Vce-on-Max-Vge-Ic 1.95V @ 15V, 10A
• Switching-Energy 83μJ (on), 140μJ (off)
• Gate-Charge 57nC
• Td-on-off-25°C 19.5ns/103ns
• Test-Condition 400V, 10A, 10 Ohm, 15V
• Pd-Power-Dissipation 115 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Voltage-VCEO-Max 600 V
• Collector-Emitter-Saturation-Voltage 1.5 V
• Continuous-Collector-Current-at-25-C 20 A
• Gate-Emitter-Leakage-Current 250 nA
• Maximum-Gate-Emitter-Voltage +/- 20 V
