STG3692QTR Overview

Product belongs to the STG3692 series. Reel is the packaging method for this product Weight of 0.002014 oz SMD/SMT Mounting-Style Configuration 4 x SPDT Power-off control: 1.12 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 1.65 V to 4.3 V supply voltage for reliable performance. Maximum supply current: 1 uA Maximum supply voltage of 4.3 V Minimum supply voltage is 1.65 V QFN-16 Single Supply supply type Max on-resistance of 5.2 Ohms Maximum off time: 17 ns 4 Switch switch functionality Maximum on-time: 20 ns The maximum switch voltage for this product is 3 V

STG3692QTR Image

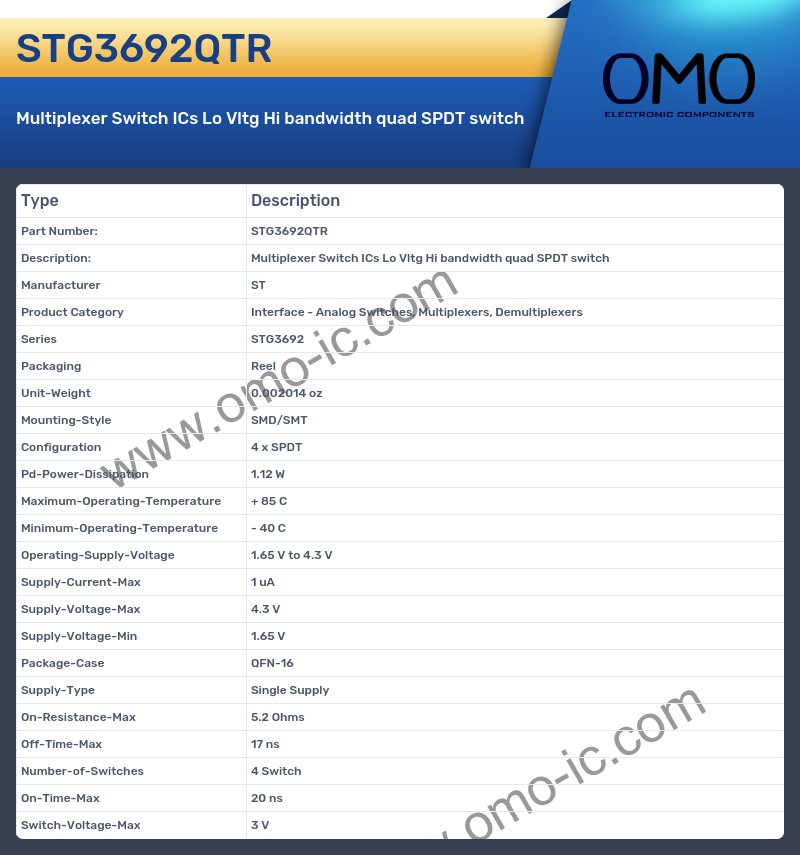

STG3692QTR Specifications

• Manufacturer ST
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series STG3692
• Packaging Reel
• Unit-Weight 0.002014 oz
• Mounting-Style SMD/SMT
• Configuration 4 x SPDT
• Pd-Power-Dissipation 1.12 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.65 V to 4.3 V
• Supply-Current-Max 1 uA
• Supply-Voltage-Max 4.3 V
• Supply-Voltage-Min 1.65 V
• Package-Case QFN-16
• Supply-Type Single Supply
• On-Resistance-Max 5.2 Ohms
• Off-Time-Max 17 ns
• Number-of-Switches 4 Switch
• On-Time-Max 20 ns
• Switch-Voltage-Max 3 V
