STF100N6F7

STF100N6F7 Overview

Tube is the packaging method for this product Weight of 0.081130 oz Through Hole Mounting-Style TO-220FP-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Power-off control: 25 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 15 ns of 16 ns. This product has a 55.5 ns of 16 ns. This product's +/- 20 V. The ID of continuous drain current is 46 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 60 V. This product has a 2 V Vgs-th gate-source threshold voltage for efficient power management. The 5.6 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 28.6 ns This product has a 21.6 ns. Qg-Gate-Charge is 30 nC. This product operates in Enhancement channel mode for optimal performance.

STF100N6F7 Image

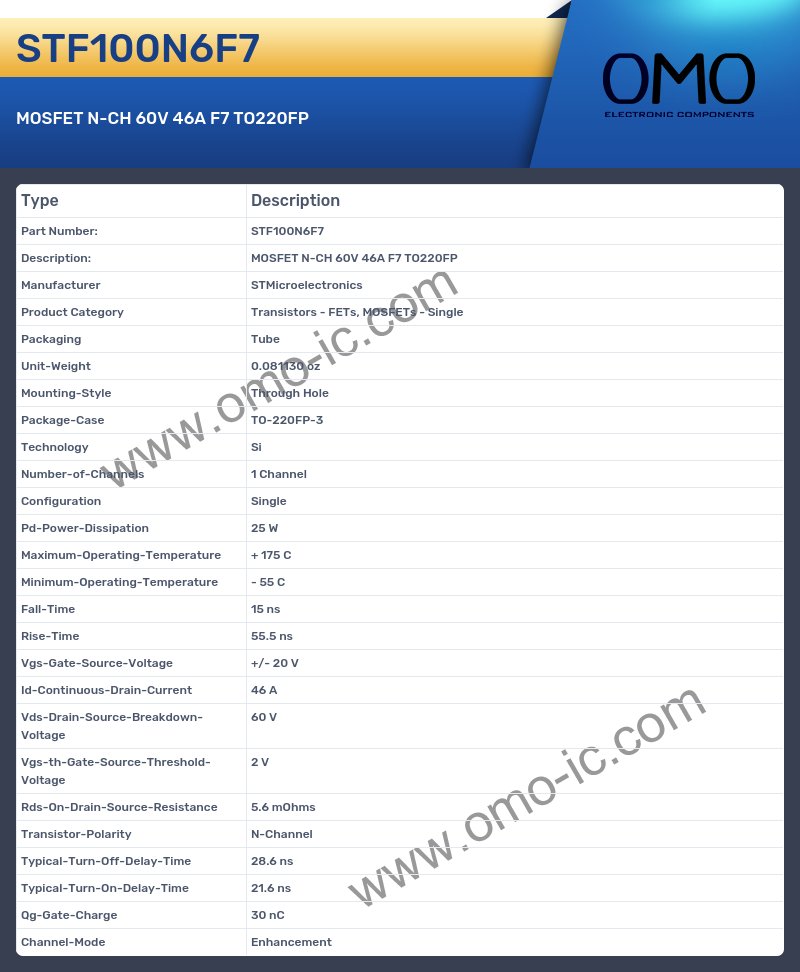

STF100N6F7 Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - FETs, MOSFETs - Single
• Packaging Tube
• Unit-Weight 0.081130 oz
• Mounting-Style Through Hole
• Package-Case TO-220FP-3
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Pd-Power-Dissipation 25 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 15 ns
• Rise-Time 55.5 ns
• Vgs-Gate-Source-Voltage +/- 20 V
• Id-Continuous-Drain-Current 46 A
• Vds-Drain-Source-Breakdown-Voltage 60 V
• Vgs-th-Gate-Source-Threshold-Voltage 2 V
• Rds-On-Drain-Source-Resistance 5.6 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 28.6 ns
• Typical-Turn-On-Delay-Time 21.6 ns
• Qg-Gate-Charge 30 nC
• Channel-Mode Enhancement
