STD70N10F4 Overview

Product belongs to the DeepGATE, STripFET series. Digi-ReelR Alternate Packaging is the packaging method for this product TO-252-3, DPak (2 Leads + Tab), SC-63 Operational temperature range: -55°C ~ 175°C (TJ) Surface Mount mounting type Supplier device package: D-Pak This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. 100V This product has an 5800pF @ 25V value of 300pF @ 25V. This product's Standard. 60A (Tc) continuous drain-ID current at 25°C; This product has an 19.5 mOhm @ 30A, 10V of 12 Ohm @ 150mA, 0V.

STD70N10F4 Image

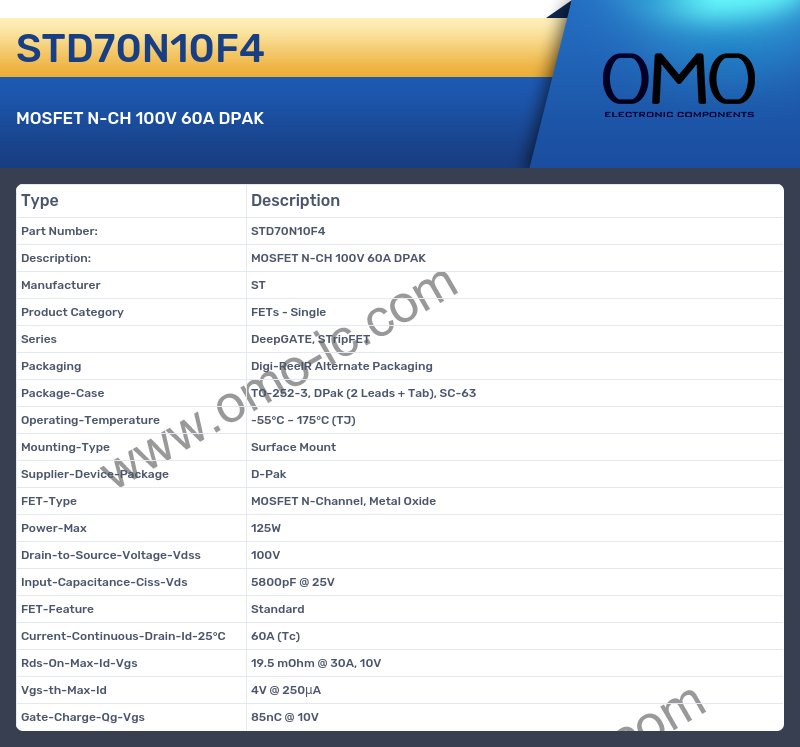

STD70N10F4 Specifications

• Manufacturer ST
• Product Category FETs - Single
• Series DeepGATE, STripFET
• Packaging Digi-ReelR Alternate Packaging
• Package-Case TO-252-3, DPak (2 Leads + Tab), SC-63
• Operating-Temperature -55°C ~ 175°C (TJ)
• Mounting-Type Surface Mount
• Supplier-Device-Package D-Pak
• FET-Type MOSFET N-Channel, Metal Oxide
• Power-Max 125W
• Drain-to-Source-Voltage-Vdss 100V
• Input-Capacitance-Ciss-Vds 5800pF @ 25V
• FET-Feature Standard
• Current-Continuous-Drain-Id-25°C 60A (Tc)
• Rds-On-Max-Id-Vgs 19.5 mOhm @ 30A, 10V
• Vgs-th-Max-Id 4V @ 250μA
• Gate-Charge-Qg-Vgs 85nC @ 10V
