STD25NF10T4

STD25NF10T4 Overview

Product belongs to the STripFET II series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 Si is the technology used. Operational temperature range: -55°C ~ 175°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: D-Pak Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 100V This product has an 1550pF @ 25V value of 300pF @ 25V. This product's Standard. 25A (Tc) continuous drain-ID current at 25°C; This product has an 38 mOhm @ 12.5A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 100 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 15 ns of 16 ns. This product has a 60 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 25 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 100 V. The 33 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 60 ns This product has a 17 ns. This product features a 20 S of 500 S for high performance. This product operates in Enhancement channel mode for optimal performance.

STD25NF10T4 Image

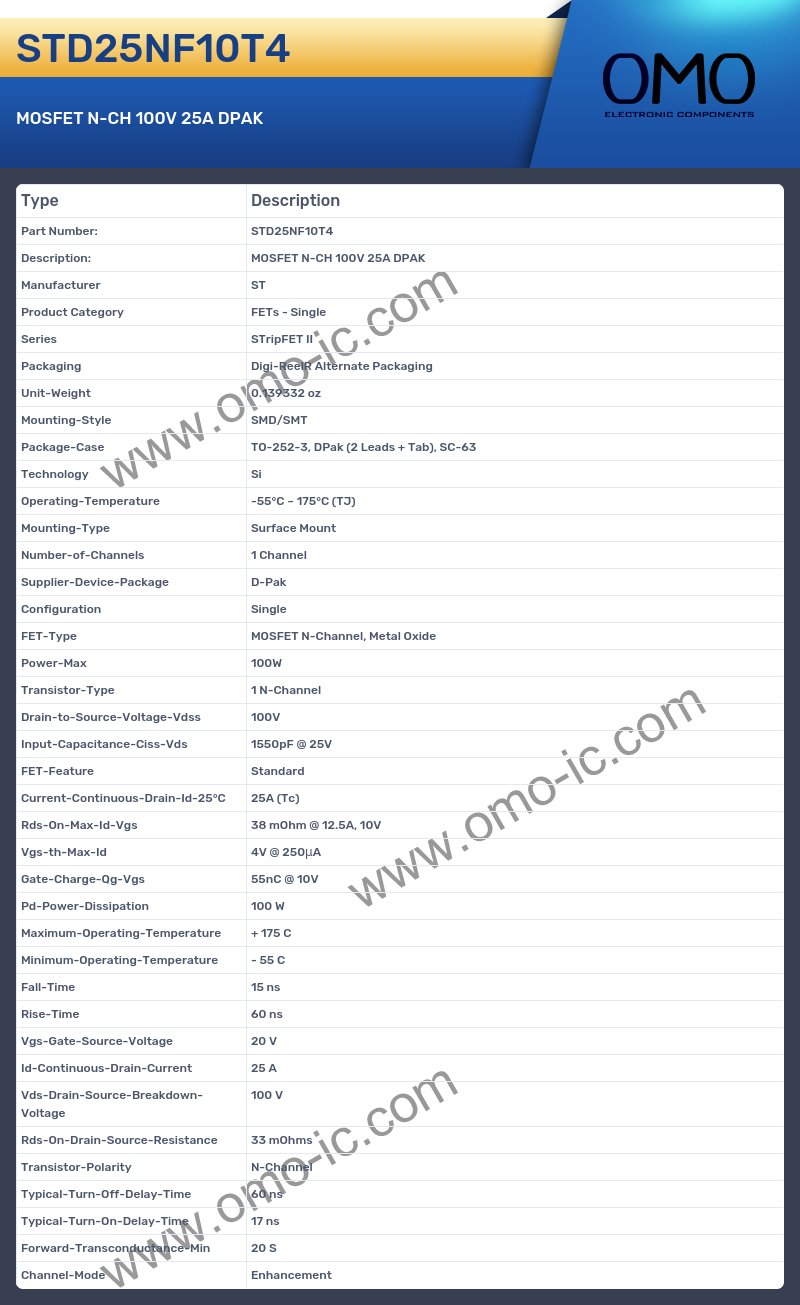

STD25NF10T4 Specifications

• Manufacturer ST
• Product Category FETs - Single
• Series STripFET II
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.139332 oz
• Mounting-Style SMD/SMT
• Package-Case TO-252-3, DPak (2 Leads + Tab), SC-63
• Technology Si
• Operating-Temperature -55°C ~ 175°C (TJ)
• Mounting-Type Surface Mount
• Number-of-Channels 1 Channel
• Supplier-Device-Package D-Pak
• Configuration Single
• FET-Type MOSFET N-Channel, Metal Oxide
• Power-Max 100W
• Transistor-Type 1 N-Channel
• Drain-to-Source-Voltage-Vdss 100V
• Input-Capacitance-Ciss-Vds 1550pF @ 25V
• FET-Feature Standard
• Current-Continuous-Drain-Id-25°C 25A (Tc)
• Rds-On-Max-Id-Vgs 38 mOhm @ 12.5A, 10V
• Vgs-th-Max-Id 4V @ 250μA
• Gate-Charge-Qg-Vgs 55nC @ 10V
• Pd-Power-Dissipation 100 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 15 ns
• Rise-Time 60 ns
• Vgs-Gate-Source-Voltage 20 V
• Id-Continuous-Drain-Current 25 A
• Vds-Drain-Source-Breakdown-Voltage 100 V
• Rds-On-Drain-Source-Resistance 33 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 60 ns
• Typical-Turn-On-Delay-Time 17 ns
• Forward-Transconductance-Min 20 S
• Channel-Mode Enhancement
