STA2500D Overview

Product belongs to the STA2500D series. Type: TxRx + MCU Tray Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style LFBGA-48 This product's 2.4GHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C Frequency Bandwidth: 3.2 kHz to 38.4 MHz Sensitivity: -88dBm Voltage Supply Range: 1.65 V ~ 2.85 V This product comes with a - memory size. Data rate maximum is 3Mbps . Serial Interfaces: I2C, JTAG, SPI, UART 8dBm Current receiving is 35.4mA Bluetooth is the RF family standard. 8DPSK, DQPSK, GFSK modulated The device has 10 GPIOs. 23mA ~ 35.4mA range: 8.7mA to 32.1mA Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2.85 V supply voltage for reliable performance. I2C JTAG PCM SPI UART interface type Maximum data rate is 3 Mbps Maximum supply voltage of 2.85 V Minimum supply voltage is 1.65 V FHS GFSK are the supported modulation formats.

STA2500D Image

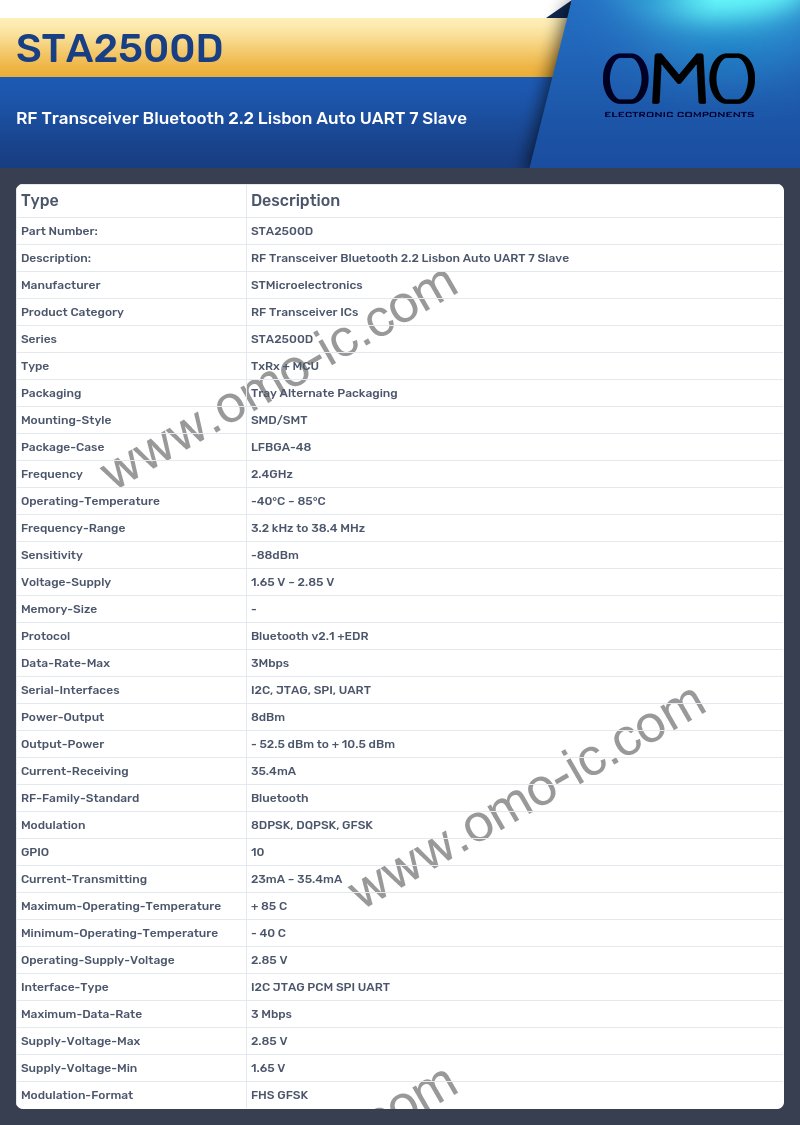

STA2500D Specifications

• Manufacturer STMicroelectronics
• Product Category RF Transceiver ICs
• Series STA2500D
• Type TxRx + MCU
• Packaging Tray Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case LFBGA-48
• Frequency 2.4GHz
• Operating-Temperature -40°C ~ 85°C
• Frequency-Range 3.2 kHz to 38.4 MHz
• Sensitivity -88dBm
• Voltage-Supply 1.65 V ~ 2.85 V
• Memory-Size -
• Protocol Bluetooth v2.1 +EDR
• Data-Rate-Max 3Mbps
• Serial-Interfaces I2C, JTAG, SPI, UART
• Power-Output 8dBm
• Output-Power - 52.5 dBm to + 10.5 dBm
• Current-Receiving 35.4mA
• RF-Family-Standard Bluetooth
• Modulation 8DPSK, DQPSK, GFSK
• GPIO 10
• Current-Transmitting 23mA ~ 35.4mA
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.85 V
• Interface-Type I2C JTAG PCM SPI UART
• Maximum-Data-Rate 3 Mbps
• Supply-Voltage-Max 2.85 V
• Supply-Voltage-Min 1.65 V
• Modulation-Format FHS GFSK
