ST890BDR

ST890BDR Overview

Product belongs to the ST890 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style SO-8 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C (TA) Output-Type: P-Channel Interface: On/Off Supplier device package: 8-SO The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: Not Required The High Side. The 75 mOhm. Voltage-Load range is 2.7 V ~ 5.5 V. Our product delivers a 1.2A of 50mA for efficient power management. The Switch-Type is General Purpose. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2.7 V to 5.5 V supply voltage for reliable performance. Output current: 1.2 A Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V Max on-resistance of 90 mOhms Maximum off time: 10 us Maximum on-time: 50 us

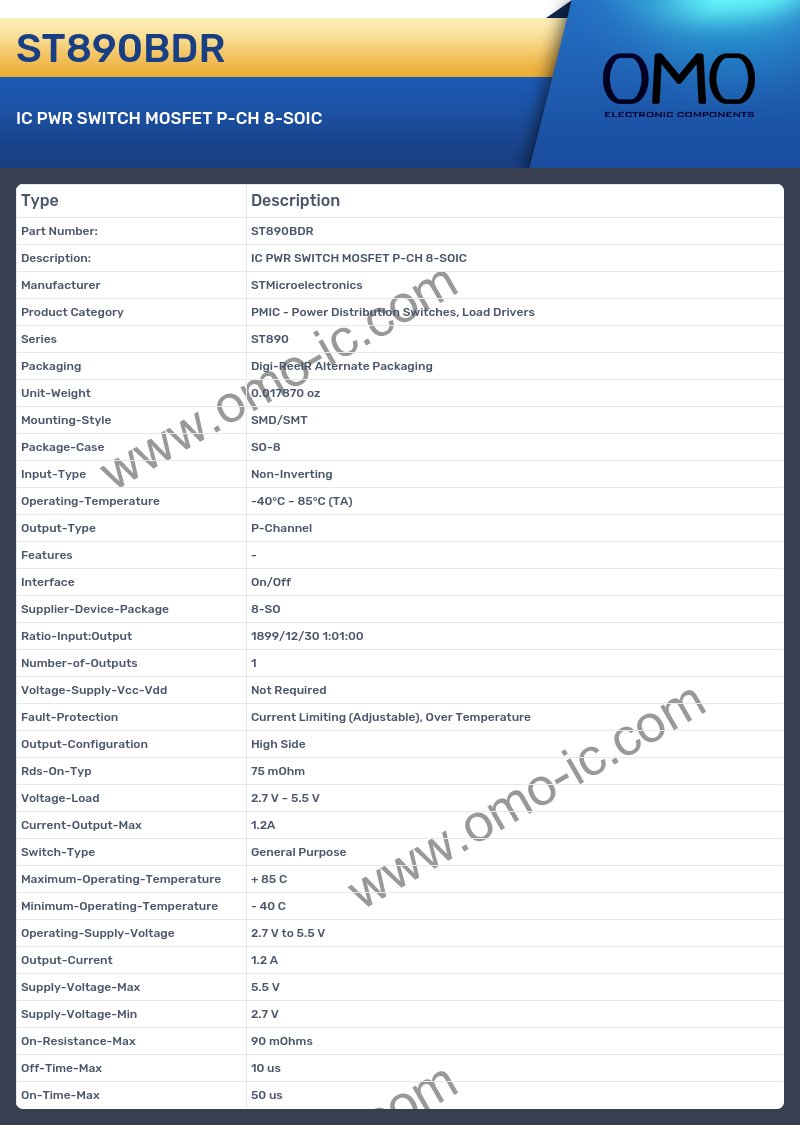

ST890BDR Image

ST890BDR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series ST890
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.017870 oz
• Mounting-Style SMD/SMT
• Package-Case SO-8
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 85°C (TA)
• Output-Type P-Channel
• Features -
• Interface On/Off
• Supplier-Device-Package 8-SO
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Adjustable), Over Temperature
• Output-Configuration High Side
• Rds-On-Typ 75 mOhm
• Voltage-Load 2.7 V ~ 5.5 V
• Current-Output-Max 1.2A
• Switch-Type General Purpose
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.7 V to 5.5 V
• Output-Current 1.2 A
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• On-Resistance-Max 90 mOhms
• Off-Time-Max 10 us
• On-Time-Max 50 us
