SRK2000A Overview

Product belongs to the SRK2000A series. This product is categorized as PMIC Type: Smart Driver Tube Alternate Packaging is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style Wide - 40 C to + 125 C operating temperature range for diverse applications SO-8 Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Supplier device package: 8-SO Number-of-Outputs: 2 Output Output-Isolation: Non-Isolated This product has No. Topology: Half-Bridge feedback Supply Voltage: 4.5 V ~ 32 V This product features 'Frequency-Switching' at Up to 500kHz for optimal performance. The Control-Features include - function. Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C This product operates at a 4.5 V to 32 V supply voltage for reliable performance. Output voltage: 13 V This product is an Synchronous rectifier smart driver for LLC resonant converters. 35 mA is 92 nA. Input Voltage Range: 4.5 V to 32 V Output current: 3.5 A Maximum duty cycle of 60 %

SRK2000A Image

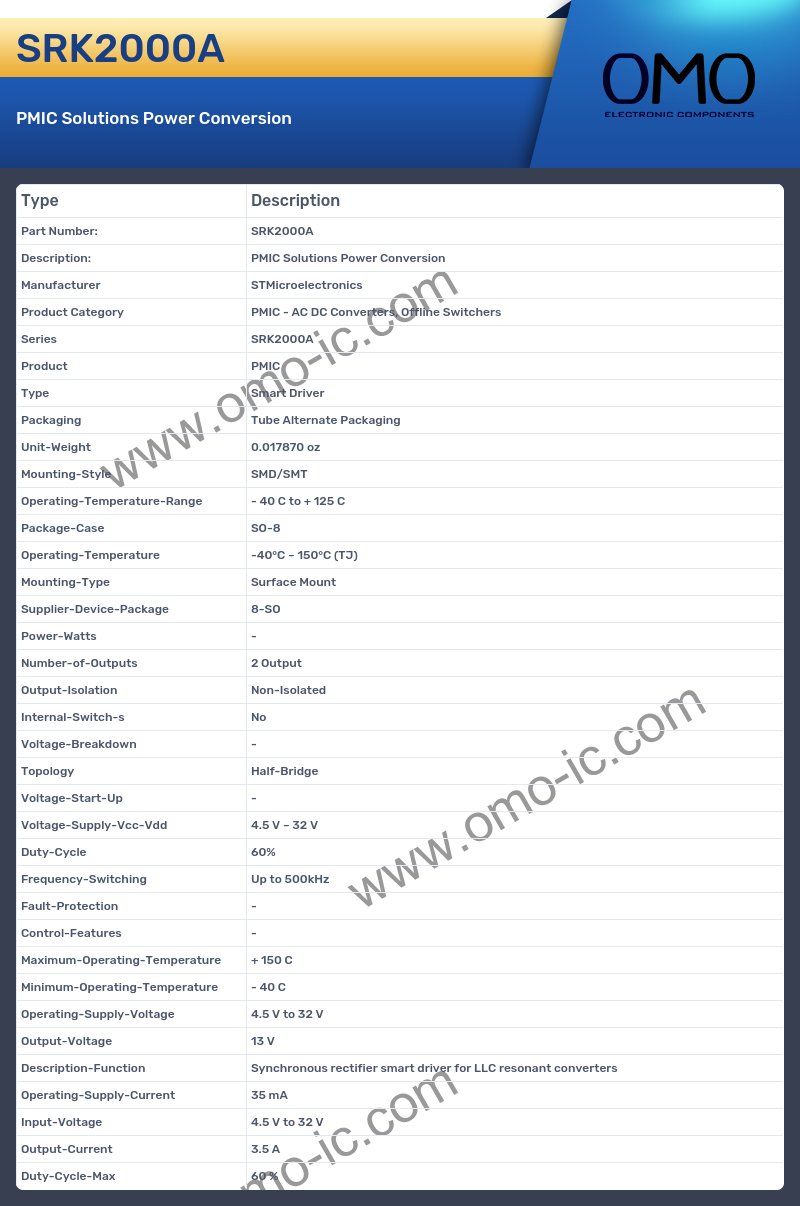

SRK2000A Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - AC DC Converters, Offline Switchers
• Series SRK2000A
• Product PMIC
• Type Smart Driver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.017870 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 125 C
• Package-Case SO-8
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Supplier-Device-Package 8-SO
• Power-Watts -
• Number-of-Outputs 2 Output
• Output-Isolation Non-Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Half-Bridge
• Voltage-Start-Up -
• Voltage-Supply-Vcc-Vdd 4.5 V ~ 32 V
• Duty-Cycle 60%
• Frequency-Switching Up to 500kHz
• Fault-Protection -
• Control-Features -
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 4.5 V to 32 V
• Output-Voltage 13 V
• Description-Function Synchronous rectifier smart driver for LLC resonant converters
• Operating-Supply-Current 35 mA
• Input-Voltage 4.5 V to 32 V
• Output-Current 3.5 A
• Duty-Cycle-Max 60 %
