SPIRIT1QTR

SPIRIT1QTR Overview

Product belongs to the SPIRIT1QTR series. Type: TxRx + MCU Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004339 oz SMD/SMT Mounting-Style QFN-20 This product's 150MHz ~ 174MHz, 300MHz ~ 348MHz, 387MHz ~ 470MHz, 779MHz ~ 956MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 105°C Frequency Bandwidth: 150 MHz to 174 MHz 300 MHz to 348 MHz 387 MHz to 470 MHz 779 MHz to 956 MHz Sensitivity: -118dBm Voltage Supply Range: 1.8 V ~ 3.6 V This product comes with a - memory size. Data rate maximum is 500kbps . Serial Interfaces: SPI 16dBm Current receiving is 9.2mA ~ 9.8mA General ISM is the RF family standard. 2FSK, ASK, GFSK, GMSK, MSK, OOK modulated The device has 4 GPIOs. 6mA ~ 54mA range: 8.7mA to 32.1mA Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 1.8 V to 3.6 V supply voltage for reliable performance. SPI interface type Maximum data rate is 500 kb/s Maximum supply voltage of 3.6 V Minimum supply voltage is 1.8 V The product has 1 receivers. 2-FSK ASK GFSK GMSK MSK OOK are the supported modulation formats. The number of transmitters is 1.

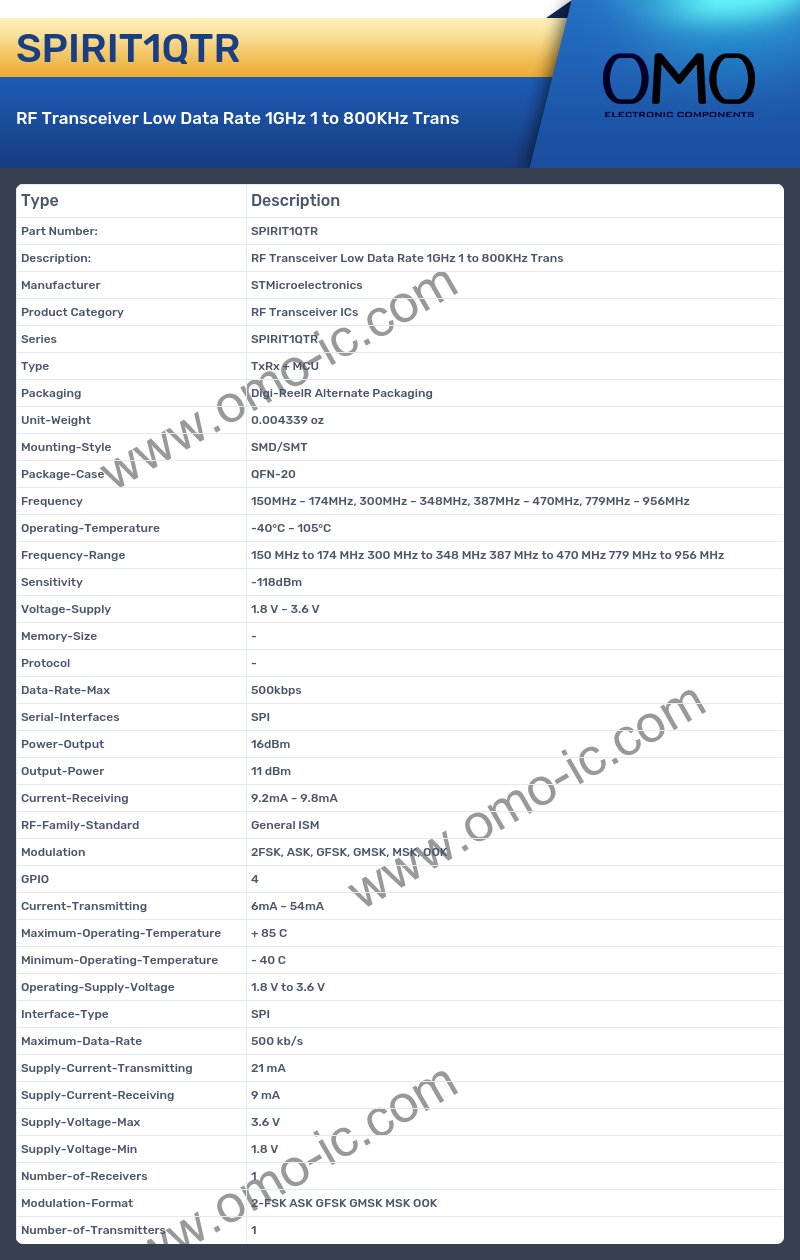

SPIRIT1QTR Image

SPIRIT1QTR Specifications

• Manufacturer STMicroelectronics
• Product Category RF Transceiver ICs
• Series SPIRIT1QTR
• Type TxRx + MCU
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004339 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-20
• Frequency 150MHz ~ 174MHz, 300MHz ~ 348MHz, 387MHz ~ 470MHz, 779MHz ~ 956MHz
• Operating-Temperature -40°C ~ 105°C
• Frequency-Range 150 MHz to 174 MHz 300 MHz to 348 MHz 387 MHz to 470 MHz 779 MHz to 956 MHz
• Sensitivity -118dBm
• Voltage-Supply 1.8 V ~ 3.6 V
• Memory-Size -
• Protocol -
• Data-Rate-Max 500kbps
• Serial-Interfaces SPI
• Power-Output 16dBm
• Output-Power 11 dBm
• Current-Receiving 9.2mA ~ 9.8mA
• RF-Family-Standard General ISM
• Modulation 2FSK, ASK, GFSK, GMSK, MSK, OOK
• GPIO 4
• Current-Transmitting 6mA ~ 54mA
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.8 V to 3.6 V
• Interface-Type SPI
• Maximum-Data-Rate 500 kb/s
• Supply-Current-Transmitting 21 mA
• Supply-Current-Receiving 9 mA
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 1.8 V
• Number-of-Receivers 1
• Modulation-Format 2-FSK ASK GFSK GMSK MSK OOK
• Number-of-Transmitters 1
