| Mfr. #: | SN74S283N |
|---|---|
| Өндіруші: | Texas Instruments |
| Сипаттама: | Logic Adder & Subtractor 4bit Binary Full |
| Өміршеңдік кезең: | Осы өндірушіден жаңа. |
| Деректер тізімі: | SN74S283N Деректер тізімі |
Product belongs to the 74S series. Tube is the packaging method for this product Weight of 0.033570 oz Through Hole Mounting-Style PDIP-16 Operational temperature range: 0°C ~ 70°C Through Hole mounting type Product function is Binary Full Adder. Number of channels: 1 Channel Supplier device package: 16-PDIP 4 bits Binary Full Adder with Fast Carry logic type The 4.75 V ~ 5.25 V. Power-off control: 510 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 5 V supply voltage for reliable performance. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V S logic type 18 ns is 23 microseconds. High-Level-Output-Current of - 1 mA 20 mA low-level output current
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

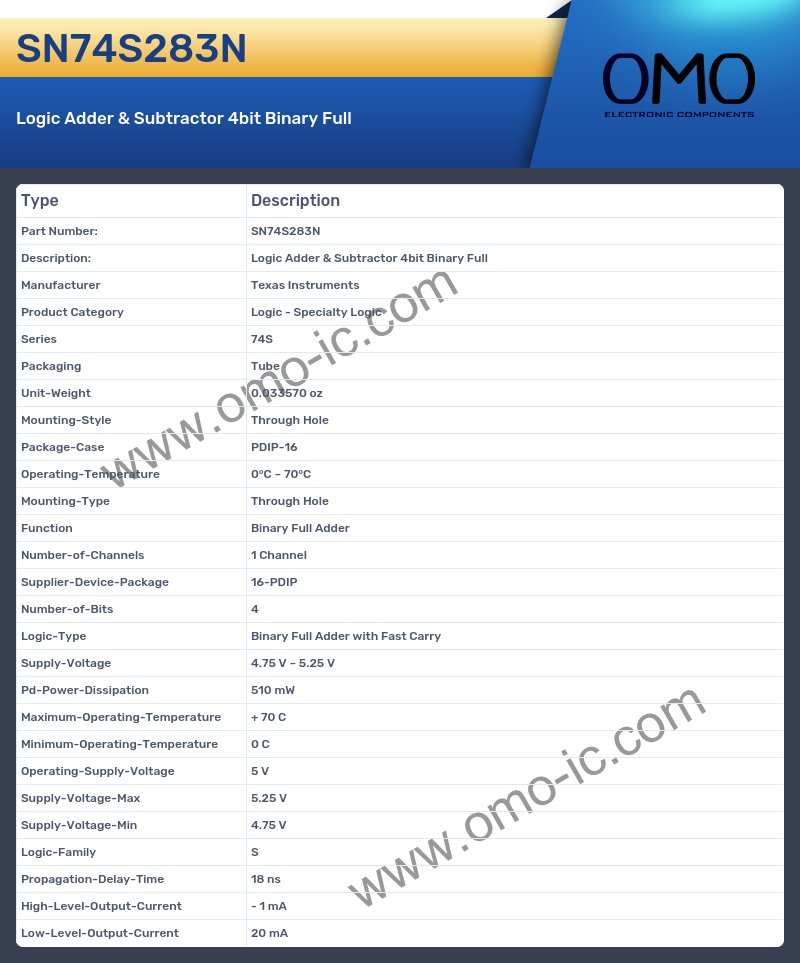

SN74S283N Specifications
A: At what frequency does the Series?
Q: The product Series is 74S.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.033570 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is Through Hole.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed PDIP-16
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is 0°C ~ 70°C.
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Through Hole.
A: At what frequency does the Function?
Q: The product Function is Binary Full Adder.
A: Is the cutoff frequency of the product Number-of-Channels?
Q: Yes, the product's Number-of-Channels is indeed 1 Channel
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is 16-PDIP.
A: What is the Number-of-Bits of the product?
Q: The Number-of-Bits of the product is 4.
A: At what frequency does the Logic-Type?
Q: The product Logic-Type is Binary Full Adder with Fast Carry.
A: At what frequency does the Supply-Voltage?
Q: The product Supply-Voltage is 4.75 V ~ 5.25 V.
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 510 mW.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 70 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is 0 C.
A: What is the Operating-Supply-Voltage of the product?
Q: The Operating-Supply-Voltage of the product is 5 V.
A: Is the cutoff frequency of the product Supply-Voltage-Max?
Q: Yes, the product's Supply-Voltage-Max is indeed 5.25 V
A: What is the Supply-Voltage-Min of the product?
Q: The Supply-Voltage-Min of the product is 4.75 V.
A: Is the cutoff frequency of the product Logic-Family?
Q: Yes, the product's Logic-Family is indeed S
A: At what frequency does the Propagation-Delay-Time?
Q: The product Propagation-Delay-Time is 18 ns.
A: Is the cutoff frequency of the product High-Level-Output-Current?
Q: Yes, the product's High-Level-Output-Current is indeed - 1 mA
A: Is the cutoff frequency of the product Low-Level-Output-Current?
Q: Yes, the product's Low-Level-Output-Current is indeed 20 mA
