SN74LVC2G32DCTR

SN74LVC2G32DCTR Overview

Product belongs to the 74LVC series. This product is categorized as Single-Function Gate Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000825 oz SMD/SMT Mounting-Style SSOP-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 1.65 V ~ 5.5 V Supplier device package: SM8 2 is 8. 2 Gate is the number of gates included in this product. 10μA maximum quiescent current. OR Gate logic type 0.7 V ~ 0.8 V is a Logic-Level-Low; 1.7 V ~ 2 V is the Logic-Level-High Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Maximum supply voltage of 5.5 V Minimum supply voltage is 1.65 V 74LVC logic type 3.8 ns is 23 microseconds. High-Level-Output-Current of - 32 mA 32 mA low-level output current Number-of-Input-Lines: 2 Input Number-of-Output-Lines: 1 Output OR logic function

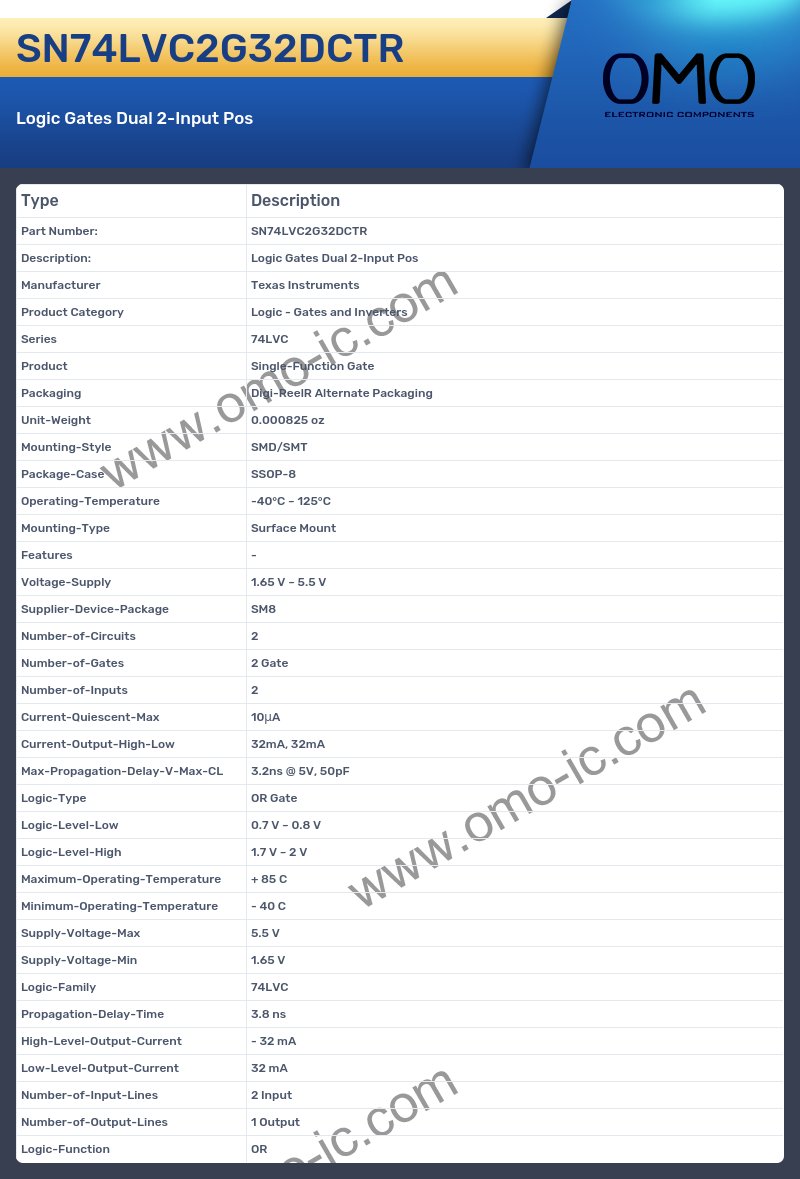

SN74LVC2G32DCTR Image

SN74LVC2G32DCTR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74LVC
• Product Single-Function Gate
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000825 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 1.65 V ~ 5.5 V
• Supplier-Device-Package SM8
• Number-of-Circuits 2
• Number-of-Gates 2 Gate
• Number-of-Inputs 2
• Current-Quiescent-Max 10μA
• Current-Output-High-Low 32mA, 32mA
• Max-Propagation-Delay-V-Max-CL 3.2ns @ 5V, 50pF
• Logic-Type OR Gate
• Logic-Level-Low 0.7 V ~ 0.8 V
• Logic-Level-High 1.7 V ~ 2 V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.65 V
• Logic-Family 74LVC
• Propagation-Delay-Time 3.8 ns
• High-Level-Output-Current - 32 mA
• Low-Level-Output-Current 32 mA
• Number-of-Input-Lines 2 Input
• Number-of-Output-Lines 1 Output
• Logic-Function OR
