SN74LVC1G86DRLR

SN74LVC1G86DRLR Overview

Product belongs to the 74LVC series. This product is categorized as Single-Function Gate Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000099 oz SMD/SMT Mounting-Style SOT-553-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 1.65 V ~ 5.5 V Supplier device package: SOT-5 1 is 8. 1 Gate is the number of gates included in this product. 10μA maximum quiescent current. XOR (Exclusive OR) logic type 0.7 V ~ 0.8 V is a Logic-Level-Low; 1.7 V ~ 2 V is the Logic-Level-High Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Maximum supply voltage of 5.5 V Minimum supply voltage is 1.65 V 74LVC logic type 5 ns is 23 microseconds. High-Level-Output-Current of - 32 mA 32 mA low-level output current Number-of-Input-Lines: 2 Input Number-of-Output-Lines: 1 Output XOR logic function

SN74LVC1G86DRLR Image

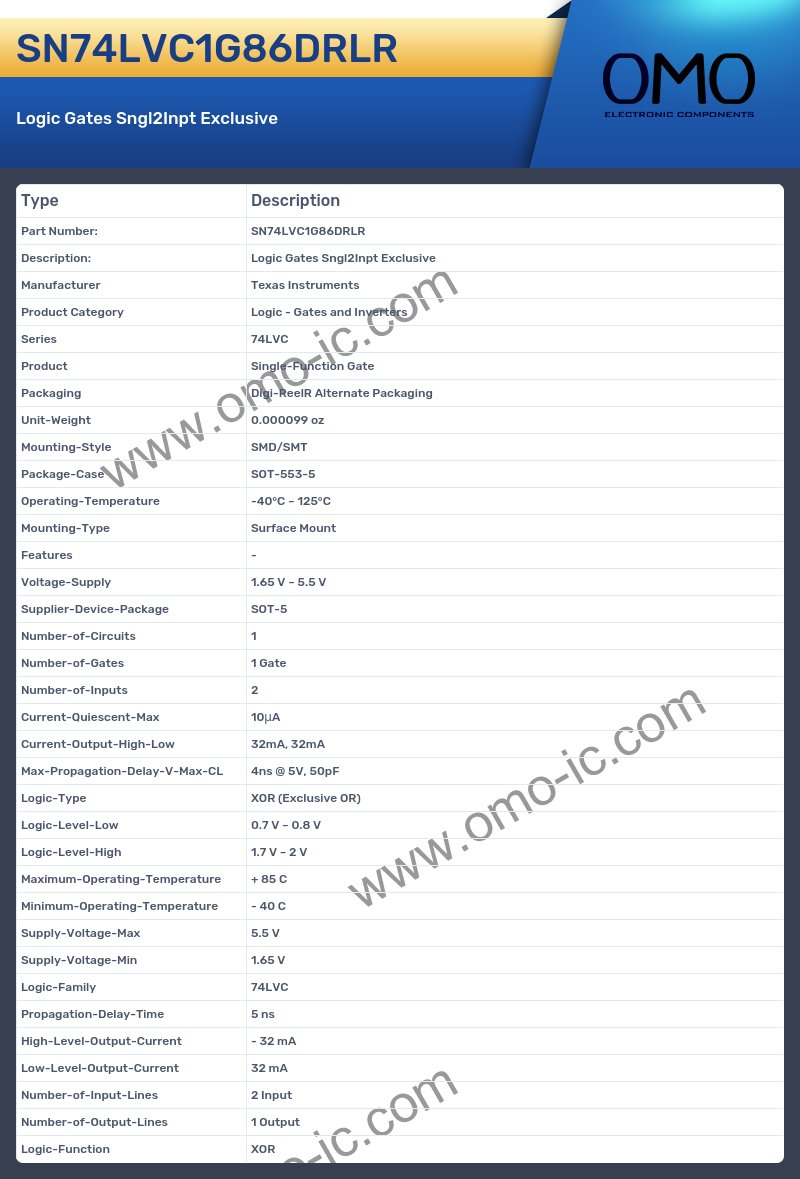

SN74LVC1G86DRLR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74LVC
• Product Single-Function Gate
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000099 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-553-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 1.65 V ~ 5.5 V
• Supplier-Device-Package SOT-5
• Number-of-Circuits 1
• Number-of-Gates 1 Gate
• Number-of-Inputs 2
• Current-Quiescent-Max 10μA
• Current-Output-High-Low 32mA, 32mA
• Max-Propagation-Delay-V-Max-CL 4ns @ 5V, 50pF
• Logic-Type XOR (Exclusive OR)
• Logic-Level-Low 0.7 V ~ 0.8 V
• Logic-Level-High 1.7 V ~ 2 V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.65 V
• Logic-Family 74LVC
• Propagation-Delay-Time 5 ns
• High-Level-Output-Current - 32 mA
• Low-Level-Output-Current 32 mA
• Number-of-Input-Lines 2 Input
• Number-of-Output-Lines 1 Output
• Logic-Function XOR
