SN74LV06APWT

SN74LV06APWT Overview

Product belongs to the 74LV series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002018 oz SMD/SMT Mounting-Style TSSOP-14 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: Open Drain Number of channels: 5 Voltage Supply Range: 2 V ~ 5.5 V Supplier device package: 14-TSSOP 6 is 8. 20μA maximum quiescent current. Inverter logic type 0.5V is a Logic-Level-Low; 1.5V is the Logic-Level-High Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Inverting 20 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 2 V LV logic type 15.2 ns at 2.5 V 10.6 ns at 3.3 V 7.5 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 0.002 mA 16 mA low-level output current Number-of-Input-Lines: 6 Input Number-of-Output-Lines: 6 Output

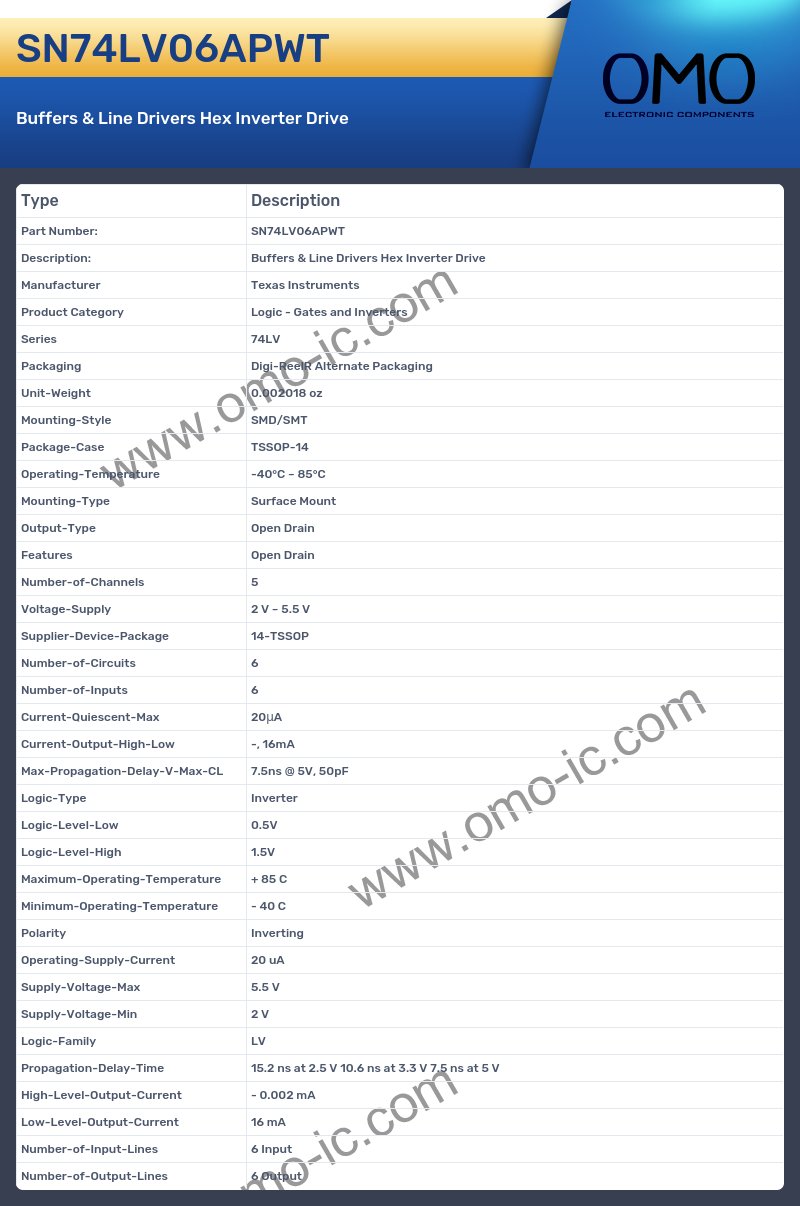

SN74LV06APWT Image

SN74LV06APWT Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74LV
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002018 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-14
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type Open Drain
• Features Open Drain
• Number-of-Channels 5
• Voltage-Supply 2 V ~ 5.5 V
• Supplier-Device-Package 14-TSSOP
• Number-of-Circuits 6
• Number-of-Inputs 6
• Current-Quiescent-Max 20μA
• Current-Output-High-Low -, 16mA
• Max-Propagation-Delay-V-Max-CL 7.5ns @ 5V, 50pF
• Logic-Type Inverter
• Logic-Level-Low 0.5V
• Logic-Level-High 1.5V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Inverting
• Operating-Supply-Current 20 uA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2 V
• Logic-Family LV
• Propagation-Delay-Time 15.2 ns at 2.5 V 10.6 ns at 3.3 V 7.5 ns at 5 V
• High-Level-Output-Current - 0.002 mA
• Low-Level-Output-Current 16 mA
• Number-of-Input-Lines 6 Input
• Number-of-Output-Lines 6 Output
