SN74LS51DR

SN74LS51DR Overview

Product belongs to the 74LS series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004564 oz SMD/SMT Mounting-Style Wide 0 C to + 70 C operating temperature range for diverse applications SOIC-14 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: Single-Ended Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 14-SOIC 2 is 8. 2 Gate is the number of gates included in this product. AND/OR/INVERT Gate logic type No. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V LS logic type 20 ns is 23 microseconds. High-Level-Output-Current of - 16 mA 0.4 mA low-level output current Number-of-Input-Lines: 5 Input Number-of-Output-Lines: 1 Output MUX Gates logic function

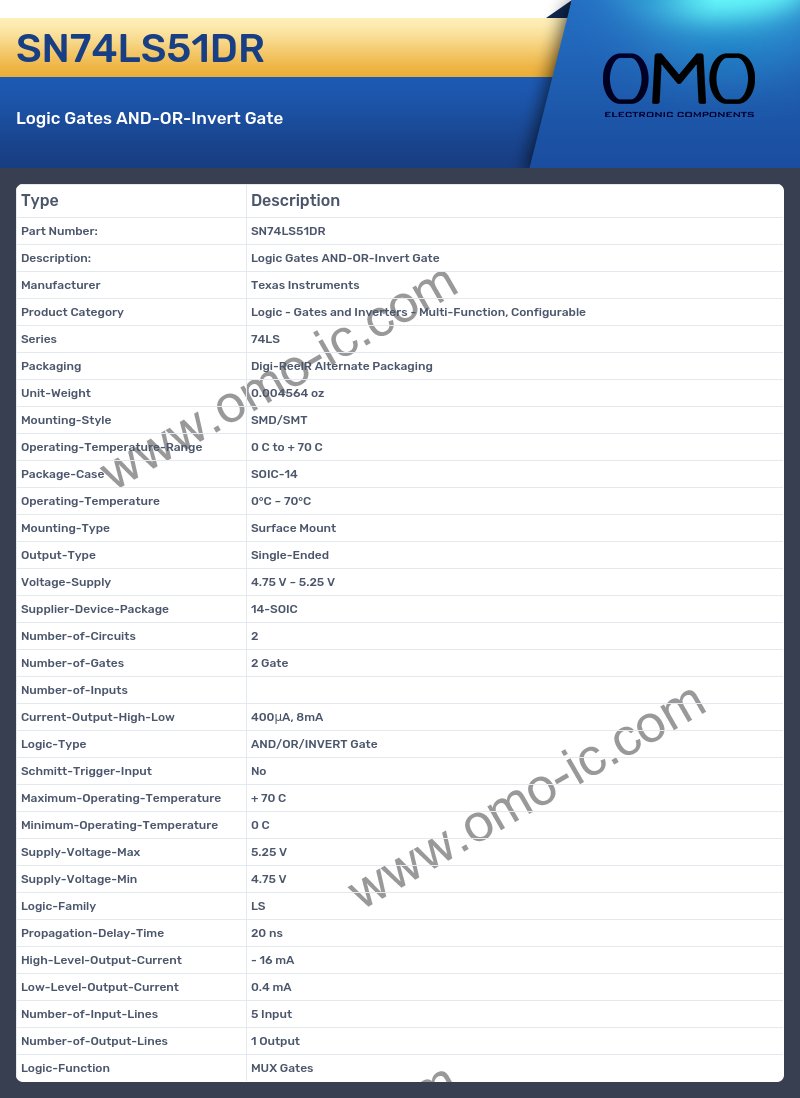

SN74LS51DR Image

SN74LS51DR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters - Multi-Function, Configurable
• Series 74LS
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004564 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range 0 C to + 70 C
• Package-Case SOIC-14
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type Single-Ended
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 14-SOIC
• Number-of-Circuits 2
• Number-of-Gates 2 Gate
• Number-of-Inputs
• Current-Output-High-Low 400μA, 8mA
• Logic-Type AND/OR/INVERT Gate
• Schmitt-Trigger-Input No
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Logic-Family LS
• Propagation-Delay-Time 20 ns
• High-Level-Output-Current - 16 mA
• Low-Level-Output-Current 0.4 mA
• Number-of-Input-Lines 5 Input
• Number-of-Output-Lines 1 Output
• Logic-Function MUX Gates
