SN74CBT3306CDR

SN74CBT3306CDR Overview

Product belongs to the 74CBT series. Type: FET Bus Switch Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 8-SOIC Voltage supply source: Analog and digital Single Supply 2 bit bits Circuit type: 1 x 1:1 2 Independent Circuit Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. Maximum supply current: 3 uA Maximum supply voltage of 5.5 V Minimum supply voltage is 4 V Maximum propagation delay: 0.15 ns Max on-resistance of 12 Ohms

SN74CBT3306CDR Image

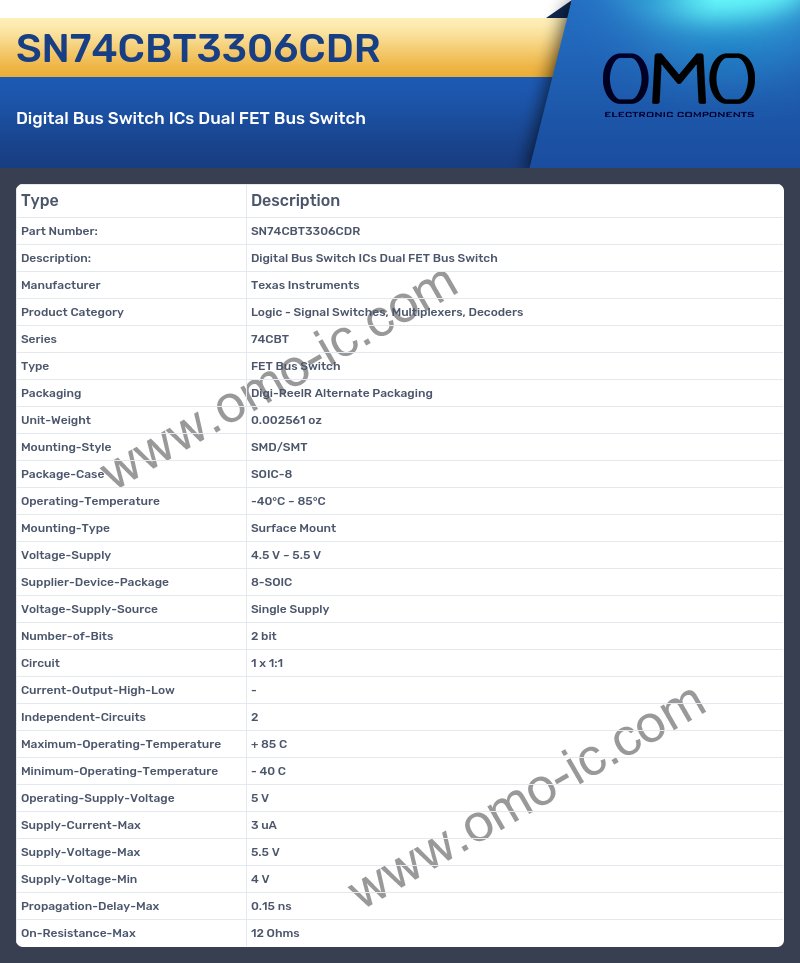

SN74CBT3306CDR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Signal Switches, Multiplexers, Decoders
• Series 74CBT
• Type FET Bus Switch
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 8-SOIC
• Voltage-Supply-Source Single Supply
• Number-of-Bits 2 bit
• Circuit 1 x 1:1
• Current-Output-High-Low -
• Independent-Circuits 2
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Supply-Current-Max 3 uA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4 V
• Propagation-Delay-Max 0.15 ns
• On-Resistance-Max 12 Ohms
