SN74BCT760MDWREP

SN74BCT760MDWREP Overview

Product belongs to the 74BCT series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.017662 oz SMD/SMT Mounting-Style SOIC-20 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Output-Type: Open Collector Number of channels: 8 Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 20-SOIC 2 element Buffer/Line Driver, Non-Inverting with Open Collector logic type 4 bits per element Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Polarity: Non-Inverting 76 uA is 92 nA. This product is also known as V62/06672-01XE and can be referred to by either part number. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V BCT logic type 9.5 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 0.1 mA 48 mA low-level output current Number-of-Input-Lines: 8 Input Number-of-Output-Lines: 8 Output

SN74BCT760MDWREP Image

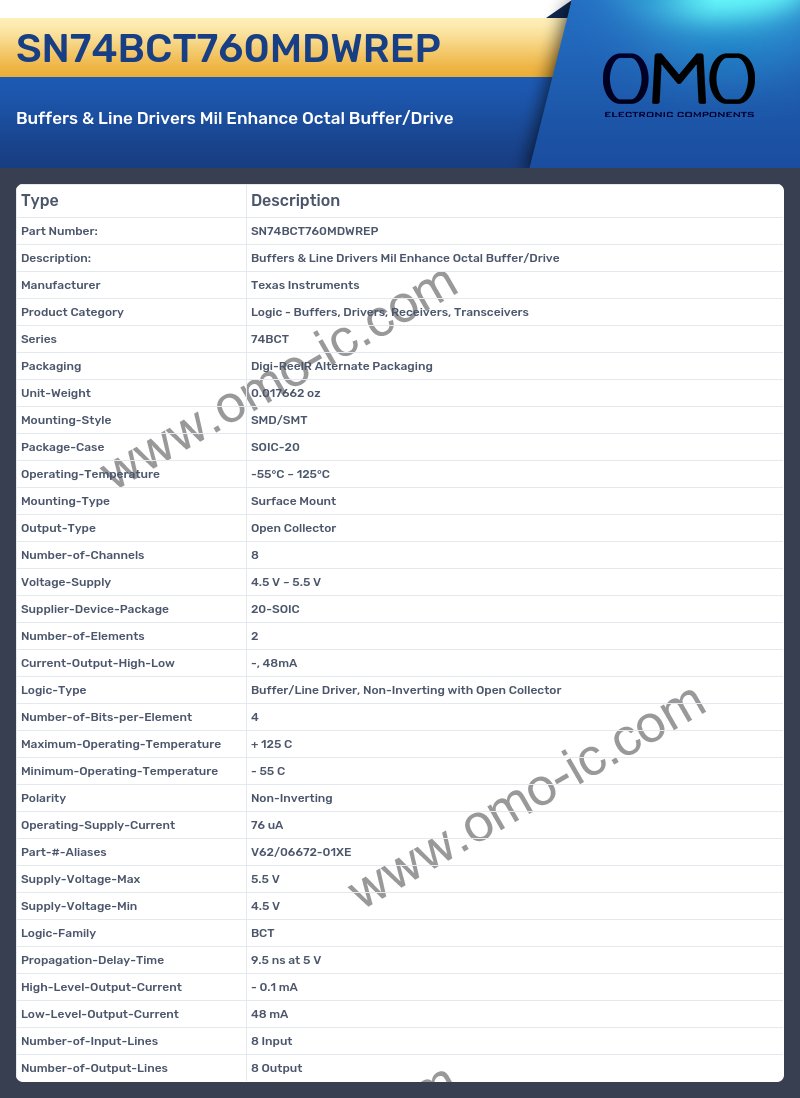

SN74BCT760MDWREP Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74BCT
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.017662 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-20
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Open Collector
• Number-of-Channels 8
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 20-SOIC
• Number-of-Elements 2
• Current-Output-High-Low -, 48mA
• Logic-Type Buffer/Line Driver, Non-Inverting with Open Collector
• Number-of-Bits-per-Element 4
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Polarity Non-Inverting
• Operating-Supply-Current 76 uA
• Part-#-Aliases V62/06672-01XE
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family BCT
• Propagation-Delay-Time 9.5 ns at 5 V
• High-Level-Output-Current - 0.1 mA
• Low-Level-Output-Current 48 mA
• Number-of-Input-Lines 8 Input
• Number-of-Output-Lines 8 Output
