| Mfr. #: | SN74BCT757N |
|---|---|
| Өндіруші: | Texas Instruments |
| Сипаттама: | Buffers & Line Drivers Octal Buffer/Drive |
| Өміршеңдік кезең: | Осы өндірушіден жаңа. |
| Деректер тізімі: | SN74BCT757N Деректер тізімі |
Product belongs to the 74BCT series. Tube is the packaging method for this product Weight of 0.042297 oz Through Hole Mounting-Style PDIP-20 Operational temperature range: 0°C ~ 70°C Through Hole mounting type Output-Type: 3-State Number of channels: 8 Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 20-PDIP 2 element Buffer/Line Driver, Non-Inverting with Open Collector logic type 4 bits per element Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Non-Inverting 77 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V BCT logic type 9.6 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 0.1 mA 64 mA low-level output current Number-of-Input-Lines: 8 Input Number-of-Output-Lines: 3 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

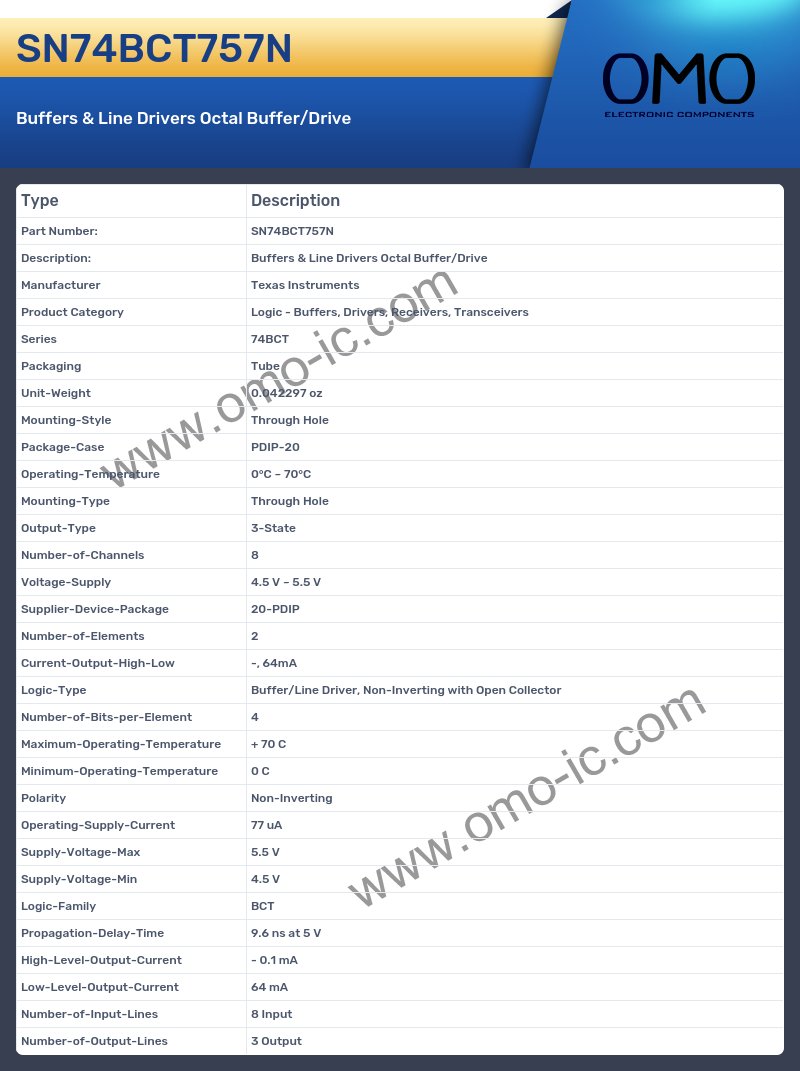

SN74BCT757N Specifications
