| Mfr. #: | SN74BCT540ANSR |
|---|---|
| Өндіруші: | Texas Instruments |
| Сипаттама: | Buffers & Line Drivers Octal Buffers and Line Drivers |
| Өміршеңдік кезең: | Осы өндірушіден жаңа. |
| Деректер тізімі: | SN74BCT540ANSR Деректер тізімі |
Product belongs to the 74BCT series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.009408 oz SMD/SMT Mounting-Style SOP-20 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: 3-State Number of channels: 8 Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 20-SO 1 element Buffer/Line Driver, Inverting logic type 8 bits per element Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Inverting 71 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V BCT logic type 5.8 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 15 mA 64 mA low-level output current Number-of-Input-Lines: 8 Input Number-of-Output-Lines: 8 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

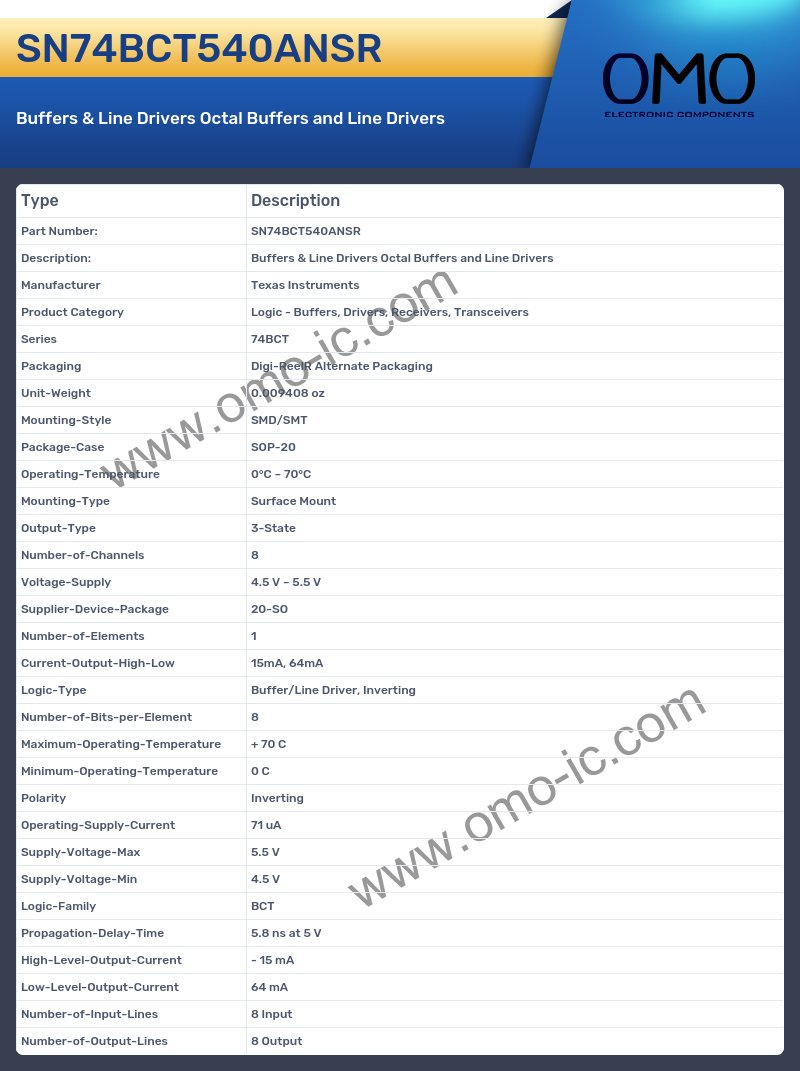

SN74BCT540ANSR Specifications
