SN74ALS29863DW

SN74ALS29863DW Overview

Product belongs to the 74ALS series. This product is categorized as Standard Transceiver Tube Alternate Packaging is the packaging method for this product Weight of 0.022025 oz SMD/SMT Mounting-Style SOIC-24 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: 3-State Product function is Bus Transceiver. Number of channels: 9 Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 24-SOIC 1 is 8. 1 element Transceiver, Non-Inverting logic type 9 bits per element Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Non-Inverting Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V ALS logic type 8 ns is 23 microseconds. TTL is the output level. This product has an TTL for easy integration with other devices. High-Level-Output-Current of - 24 mA 48 mA low-level output current

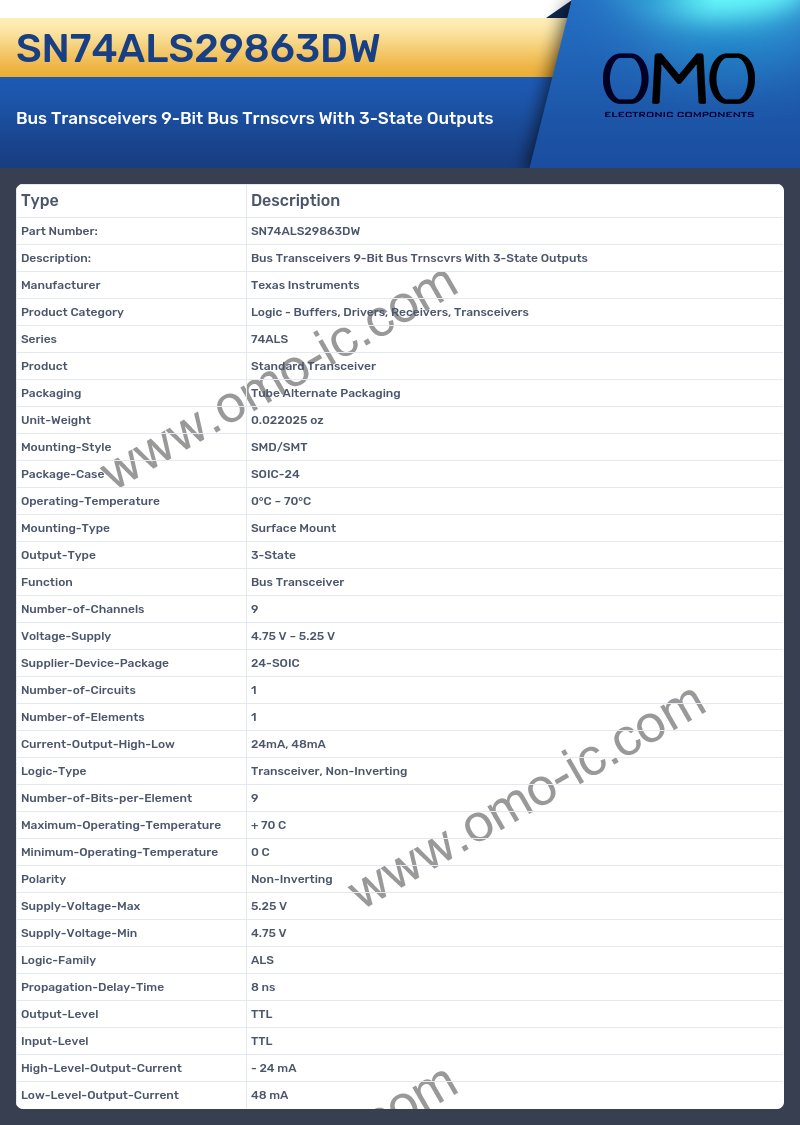

SN74ALS29863DW Image

SN74ALS29863DW Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74ALS
• Product Standard Transceiver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.022025 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-24
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Function Bus Transceiver
• Number-of-Channels 9
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 24-SOIC
• Number-of-Circuits 1
• Number-of-Elements 1
• Current-Output-High-Low 24mA, 48mA
• Logic-Type Transceiver, Non-Inverting
• Number-of-Bits-per-Element 9
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Polarity Non-Inverting
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Logic-Family ALS
• Propagation-Delay-Time 8 ns
• Output-Level TTL
• Input-Level TTL
• High-Level-Output-Current - 24 mA
• Low-Level-Output-Current 48 mA
