SN74ALS174D

SN74ALS174D Overview

Product belongs to the 74ALS series. Type: D-Type Tube Alternate Packaging is the packaging method for this product Weight of 0.004998 oz SMD/SMT Mounting-Style SOIC-16 The TTL for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C (TA) Surface Mount mounting type Output-Type: Non-Inverted Product function is Master Reset. Voltage Supply Range: 4.5 V ~ 5.5 V 7 is 8. 50MHz is 26GHz. 1 element D-Type Flip-Flop logic type 6 bits per element Positive Edge trigger type Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Non-Inverting Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V ALS logic type 17 ns is 23 microseconds. High-Level-Output-Current of - 0.4 mA 8 mA low-level output current Number-of-Input-Lines: 3 Number-of-Output-Lines: 2

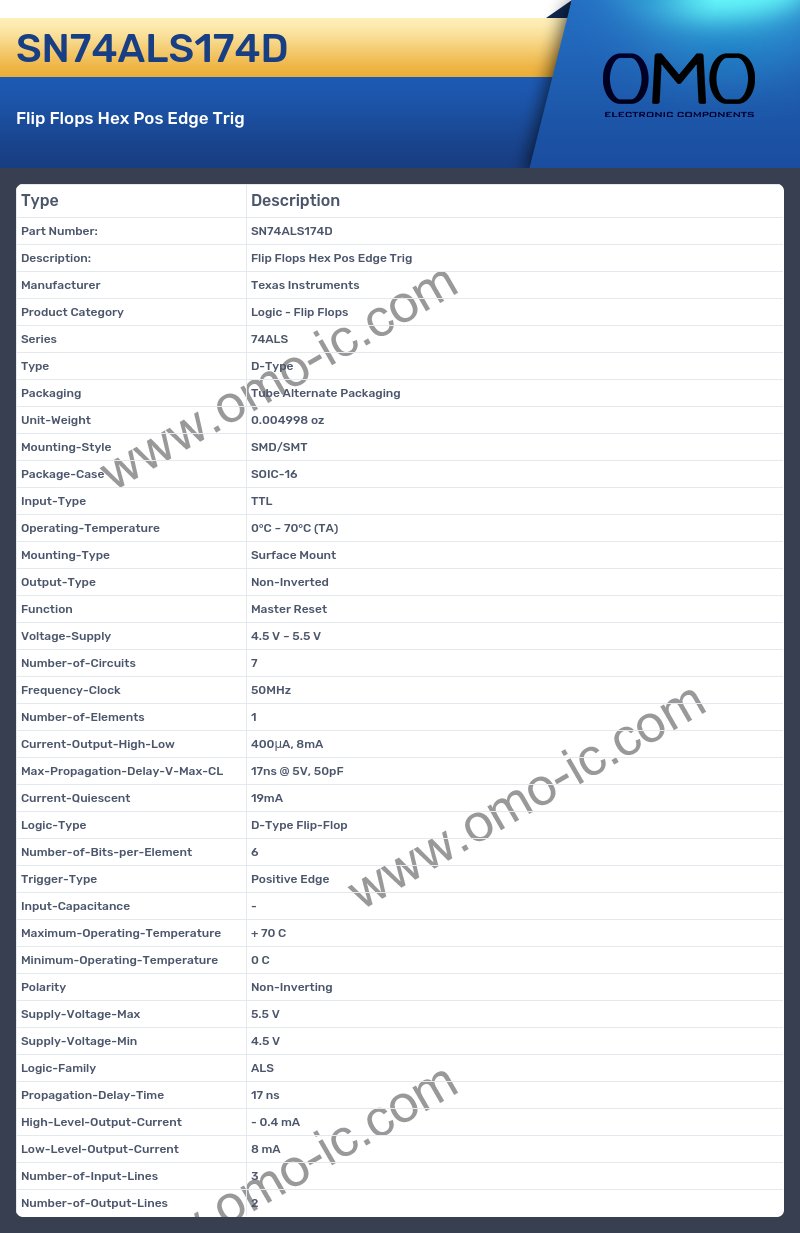

SN74ALS174D Image

SN74ALS174D Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Flip Flops
• Series 74ALS
• Type D-Type
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004998 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Input-Type TTL
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Surface Mount
• Output-Type Non-Inverted
• Function Master Reset
• Voltage-Supply 4.5 V ~ 5.5 V
• Number-of-Circuits 7
• Frequency-Clock 50MHz
• Number-of-Elements 1
• Current-Output-High-Low 400μA, 8mA
• Max-Propagation-Delay-V-Max-CL 17ns @ 5V, 50pF
• Current-Quiescent 19mA
• Logic-Type D-Type Flip-Flop
• Number-of-Bits-per-Element 6
• Trigger-Type Positive Edge
• Input-Capacitance -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Polarity Non-Inverting
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family ALS
• Propagation-Delay-Time 17 ns
• High-Level-Output-Current - 0.4 mA
• Low-Level-Output-Current 8 mA
• Number-of-Input-Lines 3
• Number-of-Output-Lines 2
