SN74ALS166DR

SN74ALS166DR Overview

Product belongs to the 74ALS series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004938 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: Push-Pull Product function is Parallel or Serial to Serial. Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 16-SOIC 1 is 8. 8 bit bits 1 element Shift Register logic type 8 bits per element Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 5 V supply voltage for reliable performance. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V ALS logic type Serial/Parallel to Serial counting sequence 13 ns is 23 microseconds. Number-of-Input-Lines: 9 Number-of-Output-Lines: 1 Positive Edge triggering type This product features an Asynchronous reset type, ensuring reliable and predictable performance.

SN74ALS166DR Image

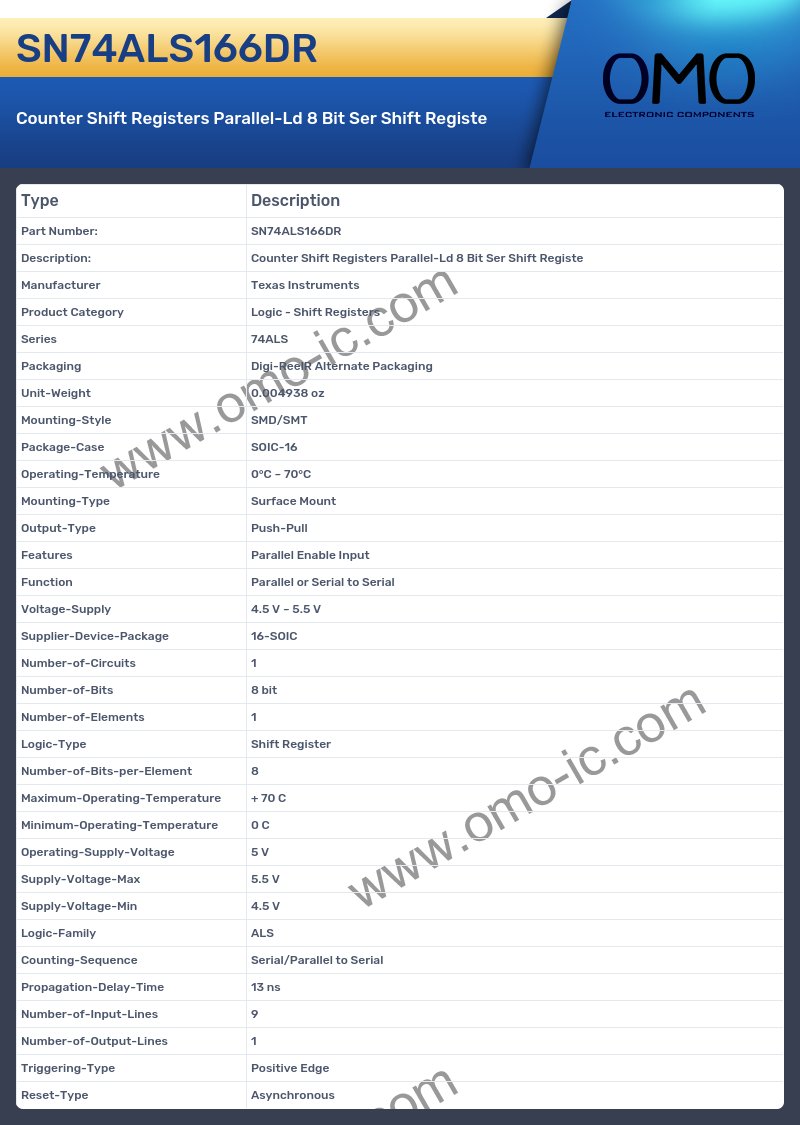

SN74ALS166DR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Shift Registers
• Series 74ALS
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004938 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type Push-Pull
• Features Parallel Enable Input
• Function Parallel or Serial to Serial
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 16-SOIC
• Number-of-Circuits 1
• Number-of-Bits 8 bit
• Number-of-Elements 1
• Logic-Type Shift Register
• Number-of-Bits-per-Element 8
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 5 V
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family ALS
• Counting-Sequence Serial/Parallel to Serial
• Propagation-Delay-Time 13 ns
• Number-of-Input-Lines 9
• Number-of-Output-Lines 1
• Triggering-Type Positive Edge
• Reset-Type Asynchronous
