SN74ACT245N

SN74ACT245N Overview

Product belongs to the 74ACT series. This product is categorized as Standard Transceiver Tube Alternate Packaging is the packaging method for this product Weight of 0.042297 oz Through Hole Mounting-Style PDIP-20 Operational temperature range: -40°C ~ 85°C Through Hole mounting type Output-Type: 3-State Product function is Bus Transceiver. Number of channels: 8 Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 20-PDIP 8 is 8. 1 element Transceiver, Non-Inverting logic type 8 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting 80 uA is 92 nA. Maximum supply current: 4 uA Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V ACT logic type 9 ns is 23 microseconds. CMOS is the output level. This product has an TTL for easy integration with other devices. High-Level-Output-Current of - 24 mA 24 mA low-level output current

SN74ACT245N Image

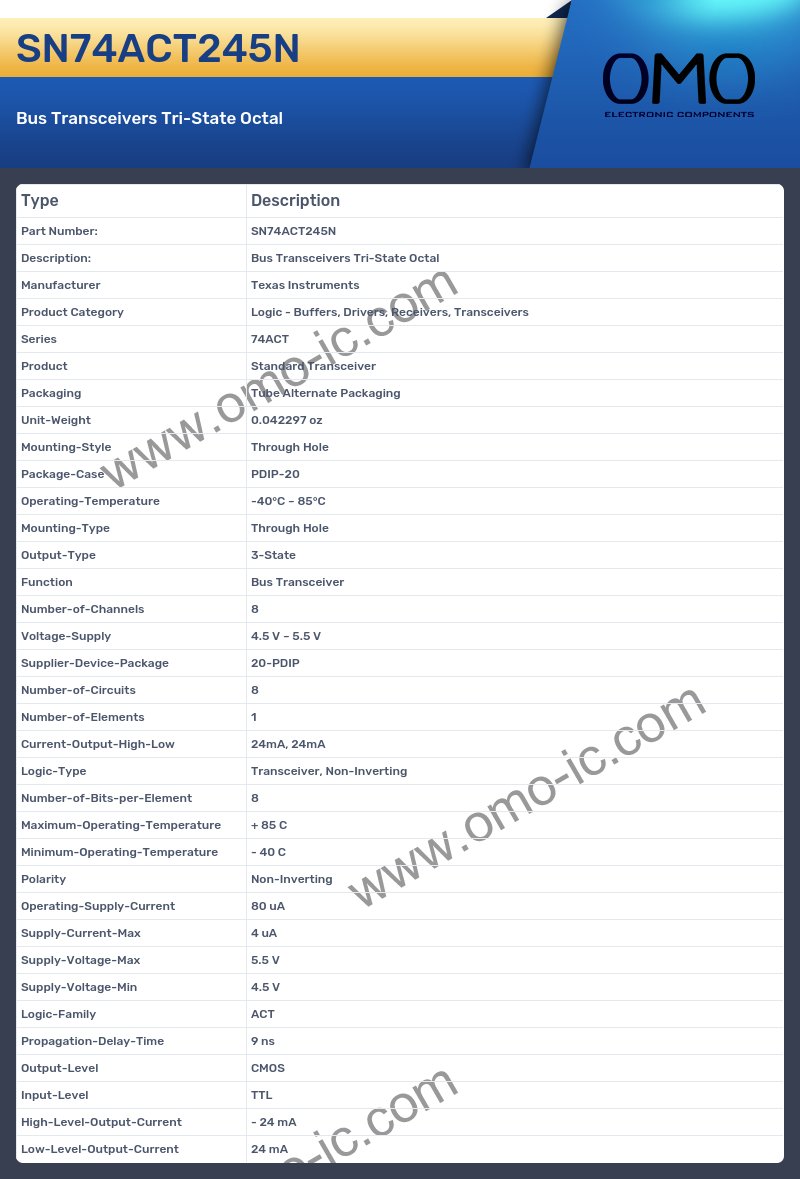

SN74ACT245N Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74ACT
• Product Standard Transceiver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.042297 oz
• Mounting-Style Through Hole
• Package-Case PDIP-20
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Through Hole
• Output-Type 3-State
• Function Bus Transceiver
• Number-of-Channels 8
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 20-PDIP
• Number-of-Circuits 8
• Number-of-Elements 1
• Current-Output-High-Low 24mA, 24mA
• Logic-Type Transceiver, Non-Inverting
• Number-of-Bits-per-Element 8
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Non-Inverting
• Operating-Supply-Current 80 uA
• Supply-Current-Max 4 uA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family ACT
• Propagation-Delay-Time 9 ns
• Output-Level CMOS
• Input-Level TTL
• High-Level-Output-Current - 24 mA
• Low-Level-Output-Current 24 mA
