| Mfr. #: | SN64BCT757DW |
|---|---|
| Өндіруші: | Texas Instruments |
| Сипаттама: | Buffers & Line Drivers Octal |
| Өміршеңдік кезең: | Осы өндірушіден жаңа. |
| Деректер тізімі: | SN64BCT757DW Деректер тізімі |
Product belongs to the 64BCT series. Tube Alternate Packaging is the packaging method for this product Weight of 0.017662 oz SMD/SMT Mounting-Style SOIC-20 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: Open Collector Number of channels: 8 Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 20-SOIC 2 element Buffer/Line Driver, Non-Inverting with Open Collector logic type 4 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting 77 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V BCT logic type 9.6 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 0.1 mA 64 mA low-level output current Number-of-Input-Lines: 8 Input Number-of-Output-Lines: 8 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

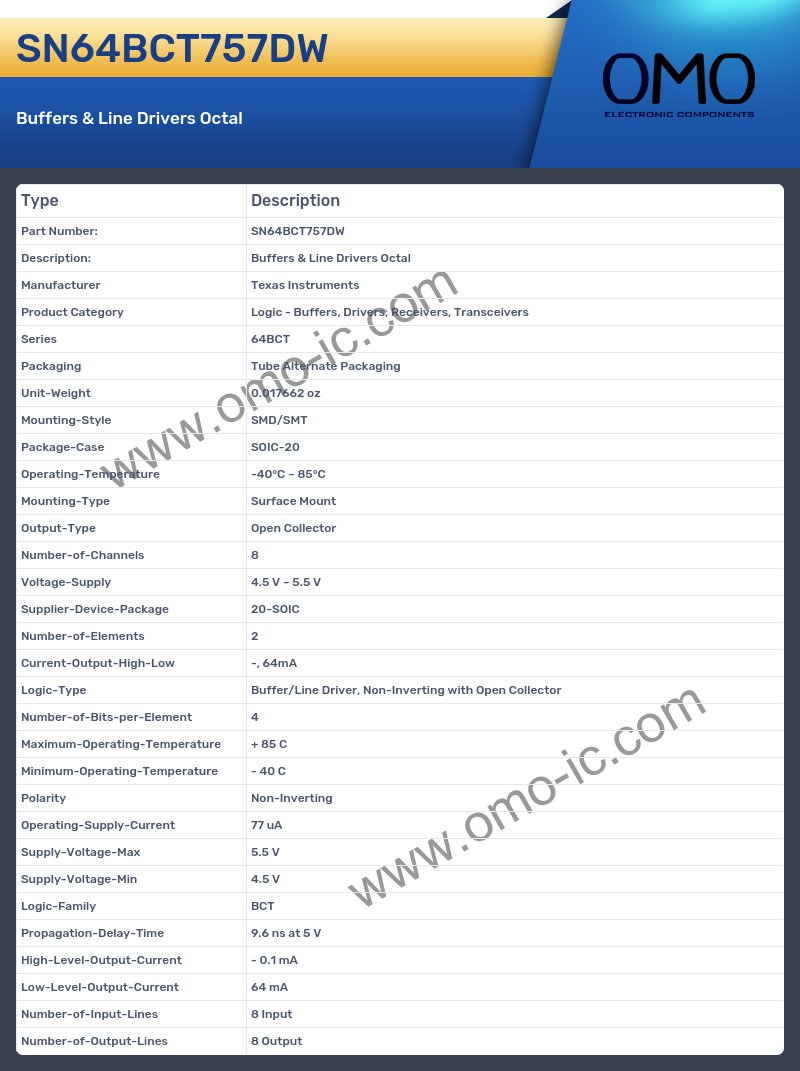

SN64BCT757DW Specifications
