SMCJ10A-TR

SMCJ10A-TR Overview

Product belongs to the SMCJ, TRANSIL series. Type: Zener Tape & Reel (TR) is the packaging method for this product DO-214AB, SMC Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Versatile General Purpose applications for maximum usability Supplier device package: SMC - Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 10V. The Voltage-Breakdown-Min is 11.1V. No Power-Line-Protection - Capacitance-Frequency

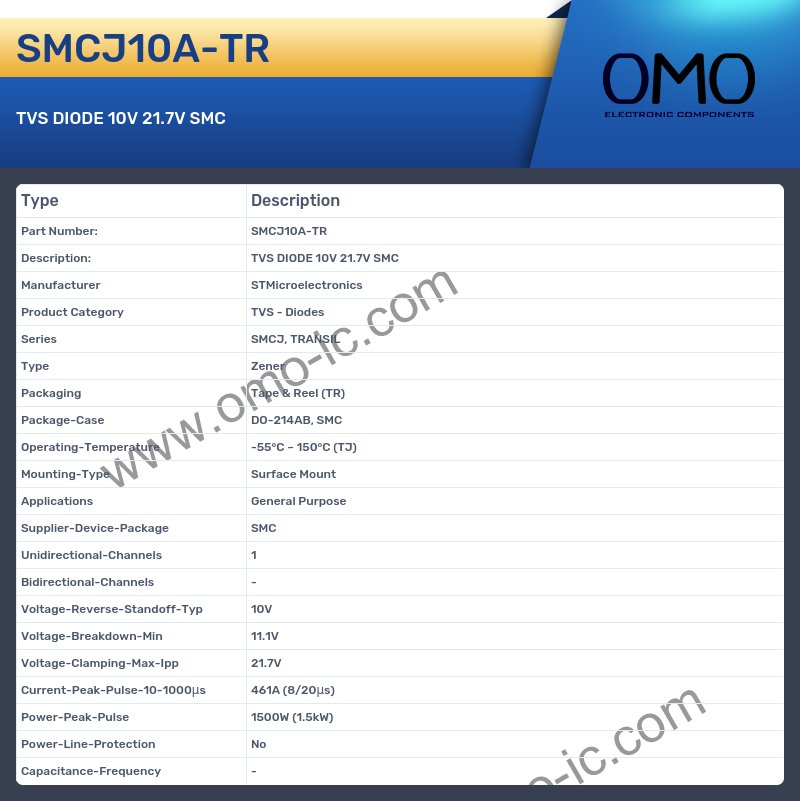

SMCJ10A-TR Image

SMCJ10A-TR Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series SMCJ, TRANSIL
• Type Zener
• Packaging Tape & Reel (TR)
• Package-Case DO-214AB, SMC
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Applications General Purpose
• Supplier-Device-Package SMC
• Unidirectional-Channels 1
• Bidirectional-Channels -
• Voltage-Reverse-Standoff-Typ 10V
• Voltage-Breakdown-Min 11.1V
• Voltage-Clamping-Max-Ipp 21.7V
• Current-Peak-Pulse-10-1000μs 461A (8/20μs)
• Power-Peak-Pulse 1500W (1.5kW)
• Power-Line-Protection No
• Capacitance-Frequency -

SMCJ10A-TR FAQ

• A: What is the Series of the product?

  Q: The Series of the product is SMCJ, TRANSIL.

• A: At what frequency does the Type?

  Q: The product Type is Zener.

• A: What is the Packaging of the product?

  Q: The Packaging of the product is Tape & Reel (TR).

• A: What is the Package-Case of the product?

  Q: The Package-Case of the product is DO-214AB, SMC.

• A: At what frequency does the Operating-Temperature?

  Q: The product Operating-Temperature is -55°C ~ 150°C (TJ).

• A: Is the cutoff frequency of the product Mounting-Type?

  Q: Yes, the product's Mounting-Type is indeed Surface Mount

• A: Is the cutoff frequency of the product Applications?

  Q: Yes, the product's Applications is indeed General Purpose

• A: What is the Supplier-Device-Package of the product?

  Q: The Supplier-Device-Package of the product is SMC.

• A: At what frequency does the Bidirectional-Channels?

  Q: The product Bidirectional-Channels is -.

• A: At what frequency does the Voltage-Reverse-Standoff-Typ?

  Q: The product Voltage-Reverse-Standoff-Typ is 10V.

• A: At what frequency does the Voltage-Breakdown-Min?

  Q: The product Voltage-Breakdown-Min is 11.1V.

• A: At what frequency does the Power-Line-Protection?

  Q: The product Power-Line-Protection is No.

• A: At what frequency does the Capacitance-Frequency?

  Q: The product Capacitance-Frequency is -.
