SMA6F12AVCL

SMA6F12AVCL Overview

Product belongs to the SMA6F, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. Wide - 55 C to + 175 C operating temperature range for diverse applications The Height of the product is 1.1 mm. 5.6 mm length of the product The 2.95 mm is at most 7.6 mm. DO-221AC, SMA Flat Leads Operational temperature range: -55°C ~ 175°C (TJ) Surface Mount mounting type Versatile General Purpose applications for maximum usability Supplier device package: SMAflat - Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 12V. The Voltage-Breakdown-Min is 13.2V. No Power-Line-Protection - Capacitance-Frequency Power-off control: 600 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Breakdown-Voltage: 13.7 V Clamping-Voltage: 18.5 V 31 A Peak Surge Current 12 V working voltage Polarity: Unidirectional

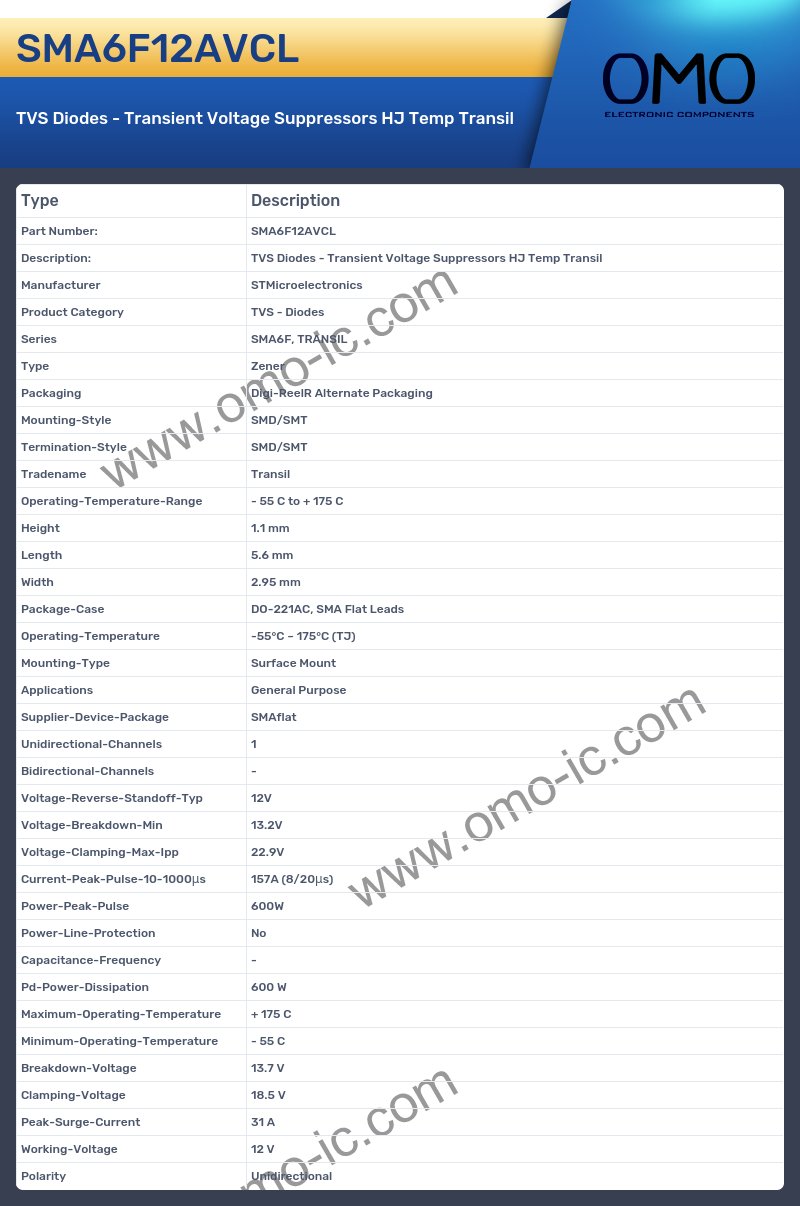

SMA6F12AVCL Image

SMA6F12AVCL Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series SMA6F, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Tradename Transil
• Operating-Temperature-Range - 55 C to + 175 C
• Height 1.1 mm
• Length 5.6 mm
• Width 2.95 mm
• Package-Case DO-221AC, SMA Flat Leads
• Operating-Temperature -55°C ~ 175°C (TJ)
• Mounting-Type Surface Mount
• Applications General Purpose
• Supplier-Device-Package SMAflat
• Unidirectional-Channels 1
• Bidirectional-Channels -
• Voltage-Reverse-Standoff-Typ 12V
• Voltage-Breakdown-Min 13.2V
• Voltage-Clamping-Max-Ipp 22.9V
• Current-Peak-Pulse-10-1000μs 157A (8/20μs)
• Power-Peak-Pulse 600W
• Power-Line-Protection No
• Capacitance-Frequency -
• Pd-Power-Dissipation 600 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Breakdown-Voltage 13.7 V
• Clamping-Voltage 18.5 V
• Peak-Surge-Current 31 A
• Working-Voltage 12 V
• Polarity Unidirectional
