SM15T36A Overview

Product belongs to the SM15T, TRANSIL series. Type: Zener Tape & Reel (TR) is the packaging method for this product Weight of 0.008818 oz SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. Wide - 65 C to + 175 C operating temperature range for diverse applications The Height of the product is 2.45 mm. 7.15 mm length of the product The 6.25 mm is at most 7.6 mm. DO-214AB, SMC Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Versatile General Purpose applications for maximum usability Supplier device package: SMC Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 30.8V. The Voltage-Breakdown-Min is 34.2V. No Power-Line-Protection - Capacitance-Frequency Power-off control: 1.5 kW Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Breakdown-Voltage: 36 V Clamping-Voltage: 64.3 V 30 A Peak Surge Current 30.8 V working voltage Polarity: Unidirectional

SM15T36A Image

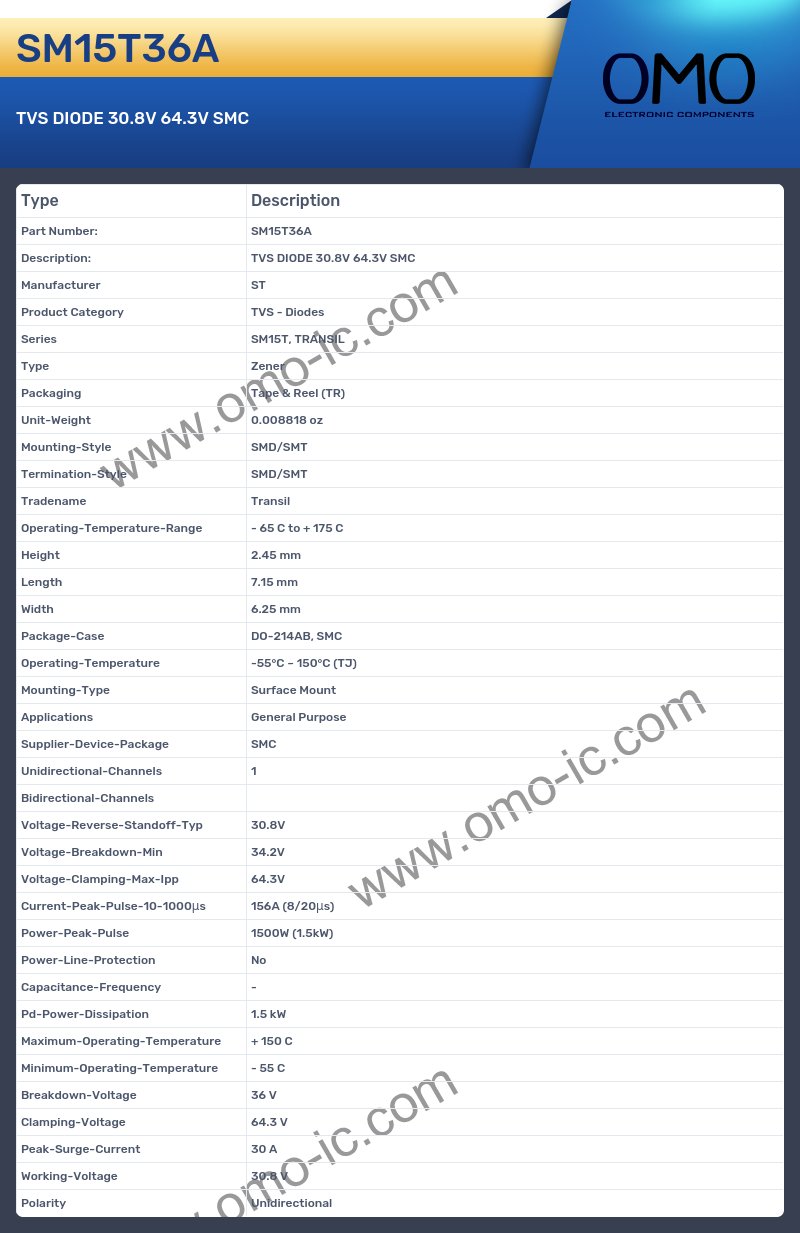

SM15T36A Specifications

• Manufacturer ST
• Product Category TVS - Diodes
• Series SM15T, TRANSIL
• Type Zener
• Packaging Tape & Reel (TR)
• Unit-Weight 0.008818 oz
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Tradename Transil
• Operating-Temperature-Range - 65 C to + 175 C
• Height 2.45 mm
• Length 7.15 mm
• Width 6.25 mm
• Package-Case DO-214AB, SMC
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Applications General Purpose
• Supplier-Device-Package SMC
• Unidirectional-Channels 1
• Bidirectional-Channels
• Voltage-Reverse-Standoff-Typ 30.8V
• Voltage-Breakdown-Min 34.2V
• Voltage-Clamping-Max-Ipp 64.3V
• Current-Peak-Pulse-10-1000μs 156A (8/20μs)
• Power-Peak-Pulse 1500W (1.5kW)
• Power-Line-Protection No
• Capacitance-Frequency -
• Pd-Power-Dissipation 1.5 kW
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Breakdown-Voltage 36 V
• Clamping-Voltage 64.3 V
• Peak-Surge-Current 30 A
• Working-Voltage 30.8 V
• Polarity Unidirectional
