SG2524N Overview

Product belongs to the SG2524 series. This product is categorized as Regulating Pulse Width Modulator Tube is the packaging method for this product Weight of 0.033570 oz Through Hole Mounting-Style PDIP-16 Operational temperature range: -25°C ~ 85°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Down, Step-Up/Step-Down. Supplier device package: 16-PDIP Number-of-Outputs: 2 Topology: Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull feedback Supply Voltage: 8 V ~ 40 V This product features 'Frequency-Switching' at 450kHz for optimal performance. The Control-Features include Current Limit, Frequency Control function. The Positive, Isolation Capable. Output-Phases: 1 Maximum duty cycle of 45 % The value of No is included as a product attribute. No enabled Serial Interfaces: - Power-off control: Yes Maximum operating temperature of + 85 C Minimum operating temperature: - 25 C This product operates at a 8 V to 40 V supply voltage for reliable performance. Output voltage: 18 V This product is an Regulating Pulse Width Modulator. 7 mA is 92 nA. Input Voltage Range: 8 V to 40 V Output current: 100 mA Switching frequency is 0.13 kHz to 722 kHz This product has a 100 ns of 16 ns. This product has a 200 ns of 16 ns.

SG2524N Image

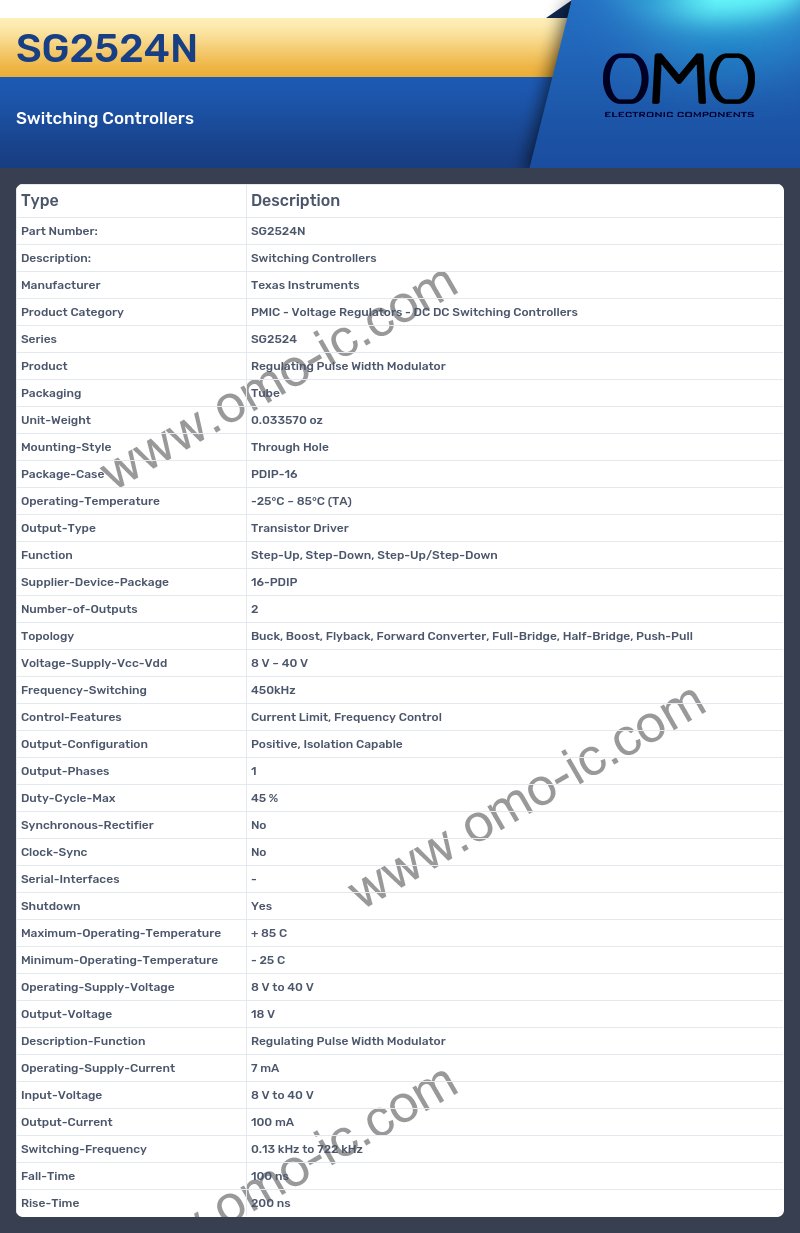

SG2524N Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series SG2524
• Product Regulating Pulse Width Modulator
• Packaging Tube
• Unit-Weight 0.033570 oz
• Mounting-Style Through Hole
• Package-Case PDIP-16
• Operating-Temperature -25°C ~ 85°C (TA)
• Output-Type Transistor Driver
• Function Step-Up, Step-Down, Step-Up/Step-Down
• Supplier-Device-Package 16-PDIP
• Number-of-Outputs 2
• Topology Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
• Voltage-Supply-Vcc-Vdd 8 V ~ 40 V
• Frequency-Switching 450kHz
• Control-Features Current Limit, Frequency Control
• Output-Configuration Positive, Isolation Capable
• Output-Phases 1
• Duty-Cycle-Max 45 %
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
• Shutdown Yes
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 25 C
• Operating-Supply-Voltage 8 V to 40 V
• Output-Voltage 18 V
• Description-Function Regulating Pulse Width Modulator
• Operating-Supply-Current 7 mA
• Input-Voltage 8 V to 40 V
• Output-Current 100 mA
• Switching-Frequency 0.13 kHz to 722 kHz
• Fall-Time 100 ns
• Rise-Time 200 ns
