REG71055DDCT Overview

Product belongs to the REG71055 series. Type: Charge Pump (Inductorless) Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001270 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications SOT-23-6 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Fixed Product function is Step-Up/Step-Down. Supplier device package: 6-SOT Number-of-Outputs: 1 Topology: Charge Pump feedback This product features 'Frequency-Switching' at 1MHz for optimal performance. The Positive. Minimum fixed output voltage is 5.5V . The value of No is included as a product attribute. The minimum input voltage is 3V. The 5.5V. Power-off control: Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 5.5 V 65 uA is 92 nA. Input Voltage Range: 3 V to 5.5 V Maximum Input Voltage: 5.5 V Output current: 60 mA Switching frequency is 1 MHz The product's 3 V is 5.1 V. Minimum supply voltage is 3 V

REG71055DDCT Image

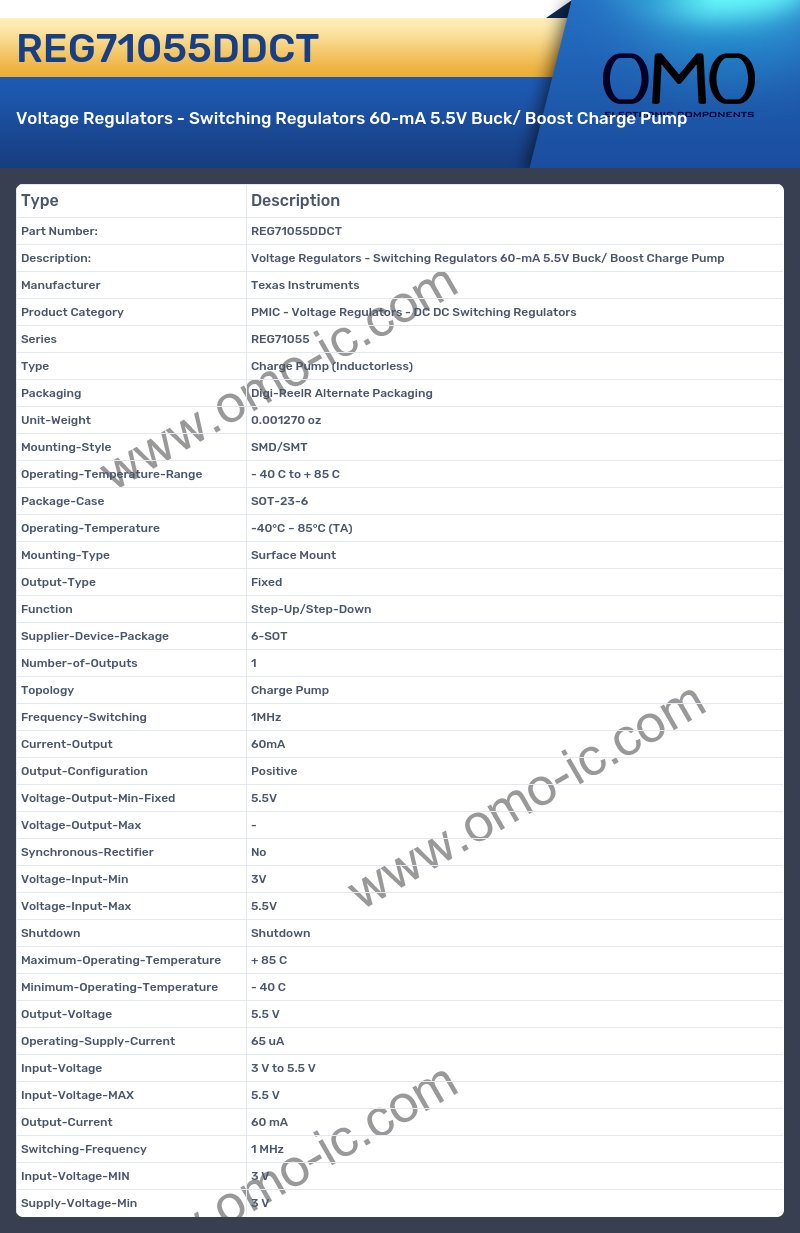

REG71055DDCT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series REG71055
• Type Charge Pump (Inductorless)
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001270 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case SOT-23-6
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Fixed
• Function Step-Up/Step-Down
• Supplier-Device-Package 6-SOT
• Number-of-Outputs 1
• Topology Charge Pump
• Frequency-Switching 1MHz
• Current-Output 60mA
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 5.5V
• Voltage-Output-Max -
• Synchronous-Rectifier No
• Voltage-Input-Min 3V
• Voltage-Input-Max 5.5V
• Shutdown Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 5.5 V
• Operating-Supply-Current 65 uA
• Input-Voltage 3 V to 5.5 V
• Input-Voltage-MAX 5.5 V
• Output-Current 60 mA
• Switching-Frequency 1 MHz
• Input-Voltage-MIN 3 V
• Supply-Voltage-Min 3 V
