REG1117FA-1.8KTTT

REG1117FA-1.8KTTT Overview

Product belongs to the REG1117A-18 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.068654 oz SMD/SMT Mounting-Style TO-263-3 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: DDPAK/TO-263-3 3.8 V ~ 15 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.8V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.8 V Maximum Input Voltage: 15 V Output current: 1 A The product's + 3.8 V is 5.1 V. Load regulation is 10 mV. The voltage regulation accuracy of this product is 1 %. Input bias current of 4 mA This product has a 10 mA of 7 mA, making it ideal for low-power applications. The 1 V at 100 mA. The maximum 1.1 V at 100 mA is 360 mV. This product's 7 mV is 0.01 %/V.

REG1117FA-1.8KTTT Image

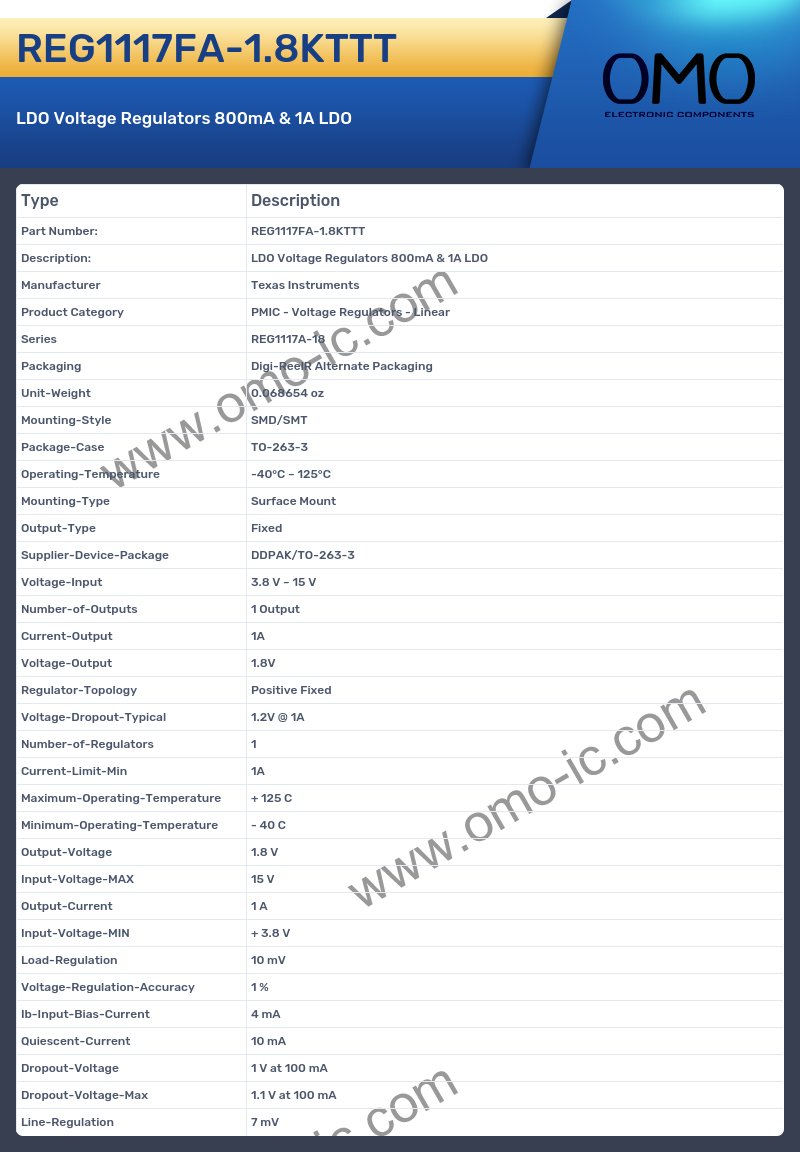

REG1117FA-1.8KTTT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series REG1117A-18
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.068654 oz
• Mounting-Style SMD/SMT
• Package-Case TO-263-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package DDPAK/TO-263-3
• Voltage-Input 3.8 V ~ 15 V
• Number-of-Outputs 1 Output
• Current-Output 1A
• Voltage-Output 1.8V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 1.2V @ 1A
• Number-of-Regulators 1
• Current-Limit-Min 1A
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.8 V
• Input-Voltage-MAX 15 V
• Output-Current 1 A
• Input-Voltage-MIN + 3.8 V
• Load-Regulation 10 mV
• Voltage-Regulation-Accuracy 1 %
• Ib-Input-Bias-Current 4 mA
• Quiescent-Current 10 mA
• Dropout-Voltage 1 V at 100 mA
• Dropout-Voltage-Max 1.1 V at 100 mA
• Line-Regulation 7 mV
