REF1004I-1.2E4 Overview

Product belongs to the REF1004-1.2 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Fixed Supplier device package: 8-SOIC Tolerance of ±0.3% - voltage input This product has a - of 200μA. Shunt is the reference type. Minimum fixed output voltage is 1.235V . 20ppm/°C Typical is 30 parts per million per degree Celsius. - of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 1.2 V Initial accuracy: 0.3 % Maximum shunt current of 20 mA

REF1004I-1.2E4 Image

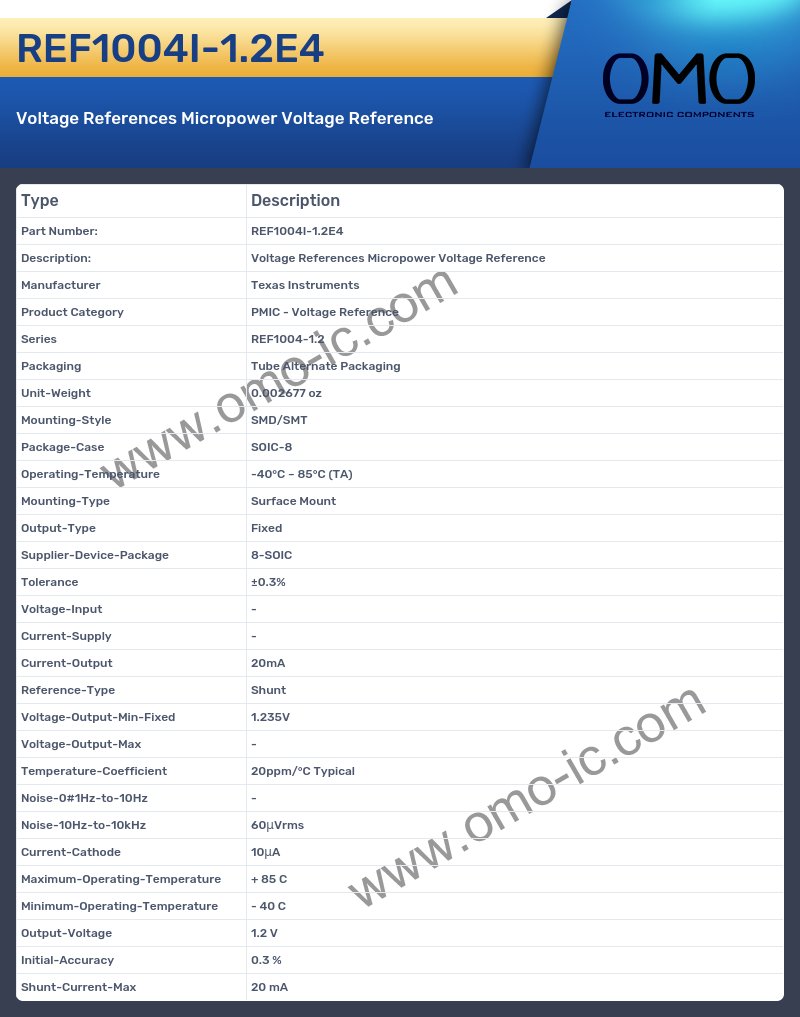

REF1004I-1.2E4 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Reference
• Series REF1004-1.2
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 8-SOIC
• Tolerance ±0.3%
• Voltage-Input -
• Current-Supply -
• Current-Output 20mA
• Reference-Type Shunt
• Voltage-Output-Min-Fixed 1.235V
• Voltage-Output-Max -
• Temperature-Coefficient 20ppm/°C Typical
• Noise-0#1Hz-to-10Hz -
• Noise-10Hz-to-10kHz 60μVrms
• Current-Cathode 10μA
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.2 V
• Initial-Accuracy 0.3 %
• Shunt-Current-Max 20 mA
