PTH04070WAZ

PTH04070WAZ Overview

Product belongs to the PTH04070W series. This product is categorized as Non-Isolated / POL Type: Non-Isolated PoL Module Tray Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications 5-SMD Module Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 1 Our product delivers a 3A of 50mA for efficient power management. The minimum input voltage is 3V. The 5.5V. This product is designed with - voltage isolation for maximum safety and reliability. 0.9 ~ 3.6 V output voltage Input Voltage Range: 3 V to 5.5 V 0.9 V to 3.6 V output voltage for channel 1 Current output of channel 1 is 3 A . Surface Mount Module package-case-size

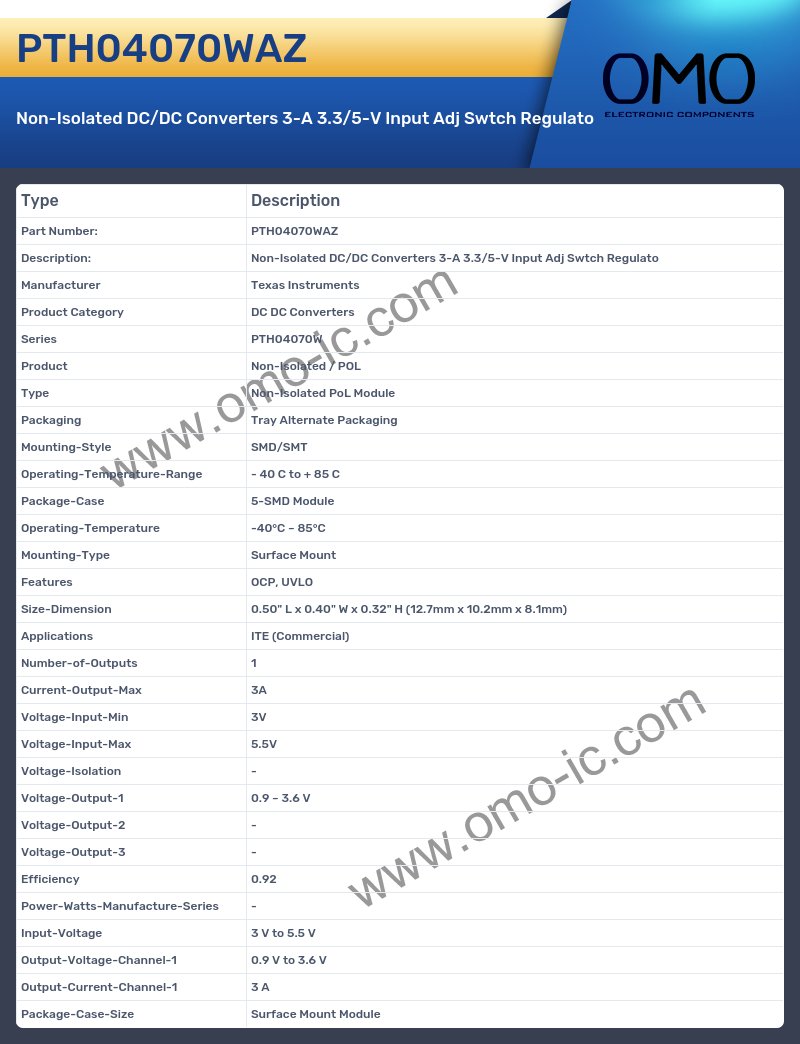

PTH04070WAZ Image

PTH04070WAZ Specifications

• Manufacturer Texas Instruments
• Product Category DC DC Converters
• Series PTH04070W
• Product Non-Isolated / POL
• Type Non-Isolated PoL Module
• Packaging Tray Alternate Packaging
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case 5-SMD Module
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features OCP, UVLO
• Size-Dimension 0.50" L x 0.40" W x 0.32" H (12.7mm x 10.2mm x 8.1mm)
• Applications ITE (Commercial)
• Number-of-Outputs 1
• Current-Output-Max 3A
• Voltage-Input-Min 3V
• Voltage-Input-Max 5.5V
• Voltage-Isolation -
• Voltage-Output-1 0.9 ~ 3.6 V
• Voltage-Output-2 -
• Voltage-Output-3 -
• Efficiency 0.92
• Power-Watts-Manufacture-Series -
• Input-Voltage 3 V to 5.5 V
• Output-Voltage-Channel-1 0.9 V to 3.6 V
• Output-Current-Channel-1 3 A
• Package-Case-Size Surface Mount Module
